Installing HDD 4
2.2 MINI 1U, COMPACT 1U, 1U
For the first time installation, make sure whether the HDD has been installed or not. It is
recommended to use HDD of enterprise level or surveillance level. It is not recommended to
use PC HDD.

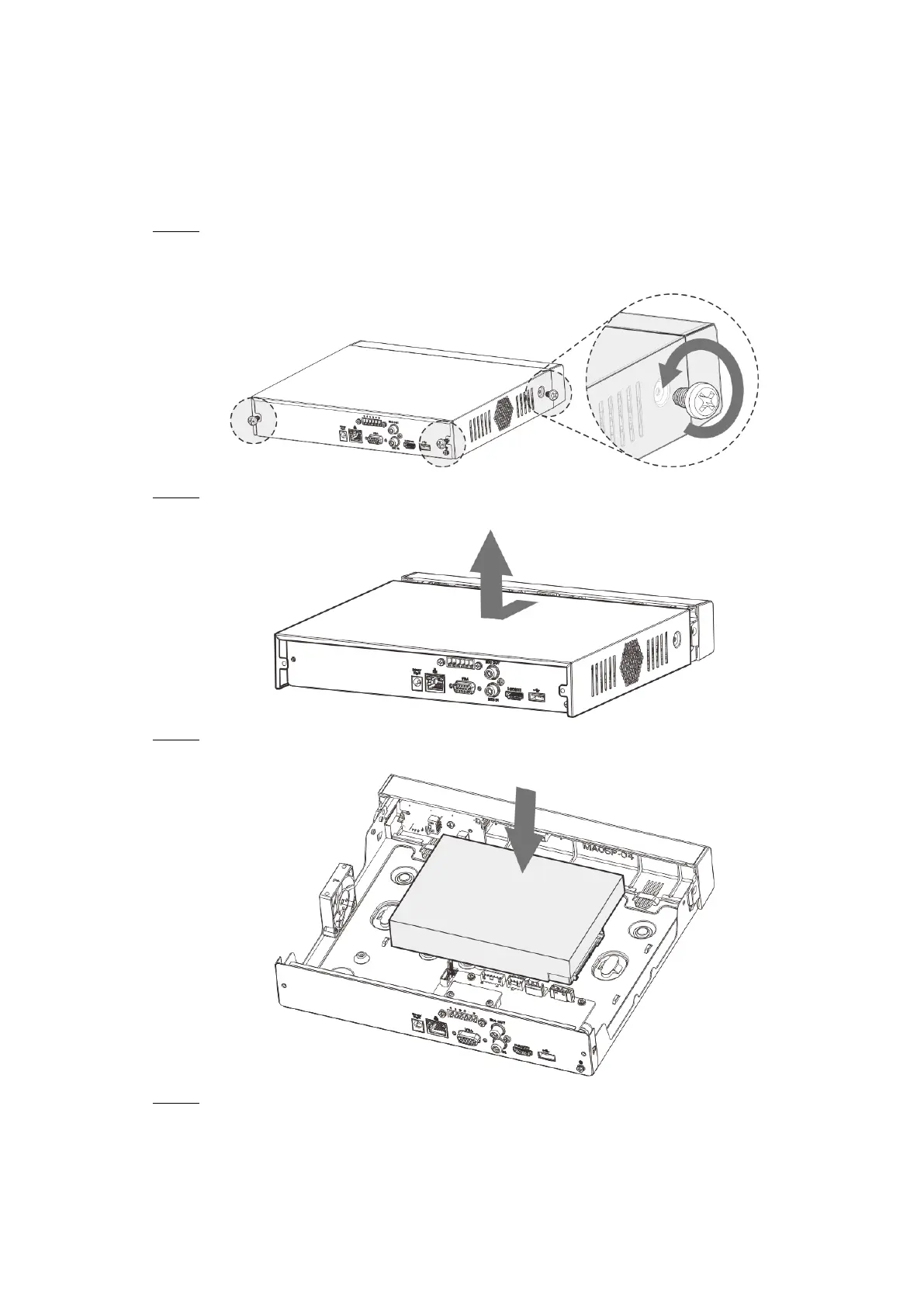

Remove the fixing screws of the case cover (including the two screws on the rear panel Step 1
and two screws on the left and right panels).
Installing HDD (1) Figure 2-7
Remove the case cover along the direction shown in the following arrow. Step 2
Installing HDD (2) Figure 2-8
Match the four holes on the baseboard to place the HDD. Step 3
Installing HDD (3) Figure 2-9
Turn the device upside down, match the screws with the holes on the HDD and then Step 4
fasten them. The HDD is fixed to the baseboard.
To Next Page
