Dahua HDCVI series Quick Start Guide

22

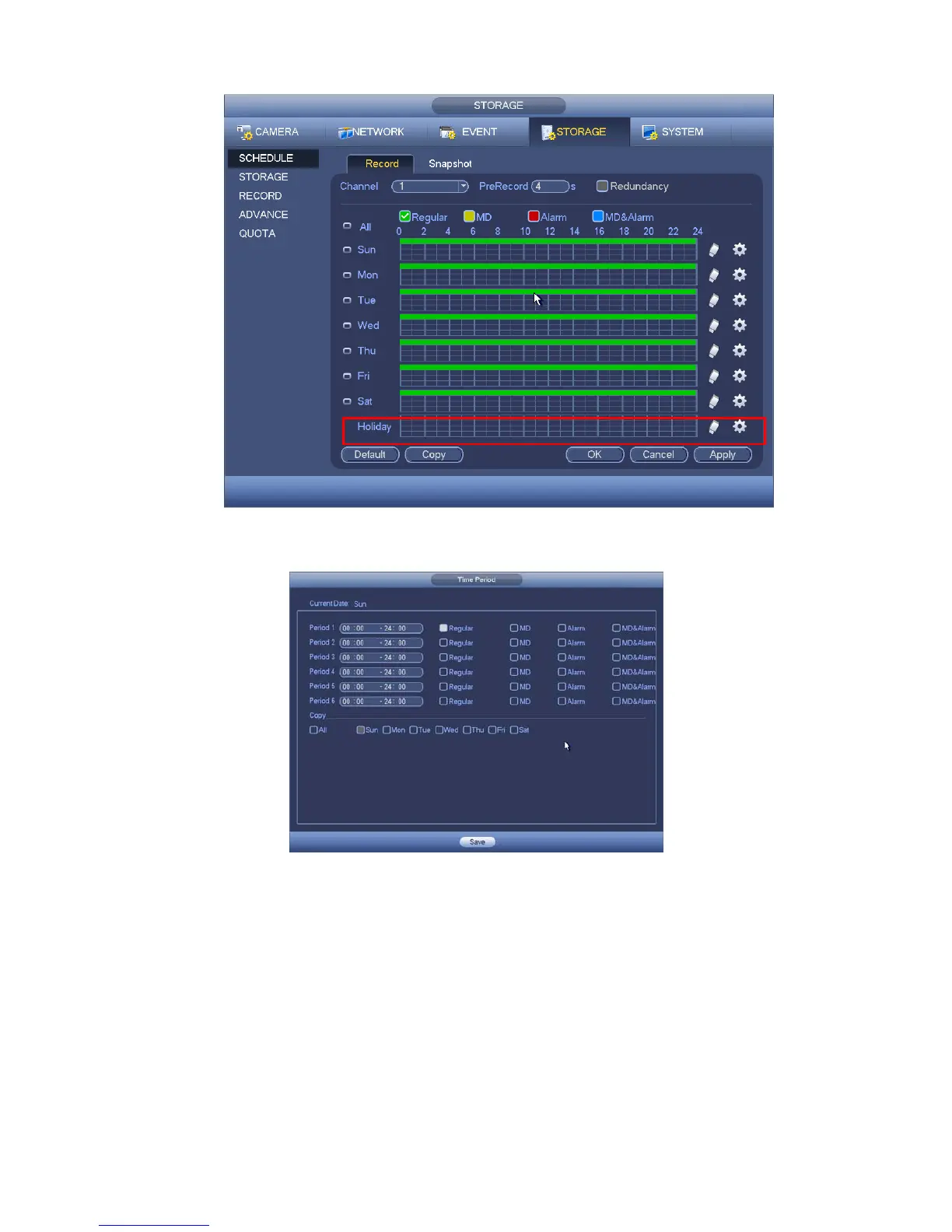

Figure 2-14
Figure 2-15
2.6.1 Quick Setup
Copy function allows you to copy one channel setup to another. After setting in channel 1, click
Copy button, you can go to interface Figure 2-16. You can see current channel name is grey
such as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7. If
you wan to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click
the OK button to save current copy setup. Click the OK button in the Encode interface, the copy
function succeeded.

Dahua HDCVI series Specifications

General

HDD Interface	SATA
Video Compression	H.264/H.265
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Remote Access	DMSS
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	10% to 90% (non-condensing)
