Dahua HDCVI series Quick Start Guide

25

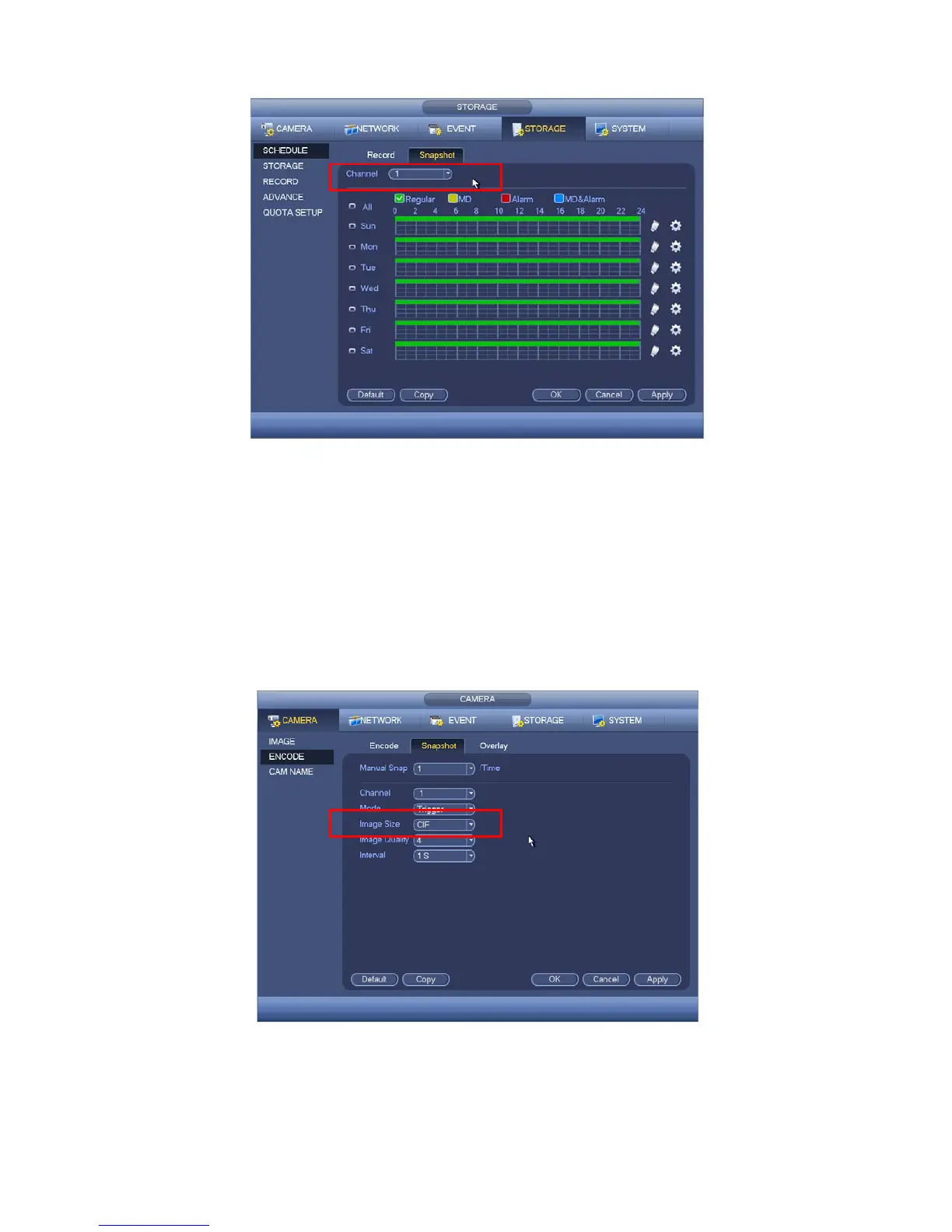

Figure 2-19
2.7.2 Trigger Snapshot
Please follow the steps listed below to enable the activation snapshot function. After you
enabled this function, system can snapshot when the corresponding alarm occurred.
z In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input
snapshot mode as trigger, size, quality and frequency. See Figure 2-20.
z In main menu, from Setting->Event->Detect, please enable snapshot function for specified
channels (Figure 2-21). Or In main menu, from Setting->Event->Alarm (Figure 2-22) please
enable snapshot function for specified channels.
Figure 2-20

Dahua HDCVI series Specifications

General

HDD Interface	SATA
Video Compression	H.264/H.265
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Remote Access	DMSS
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	10% to 90% (non-condensing)
