Dahua IPC-HFW5100C User Manual

8
2 Framework
2.1 Multiple-function Combination Cable
You can refer to the following figure for multiple-function combination cable information. See Figure
2-1.

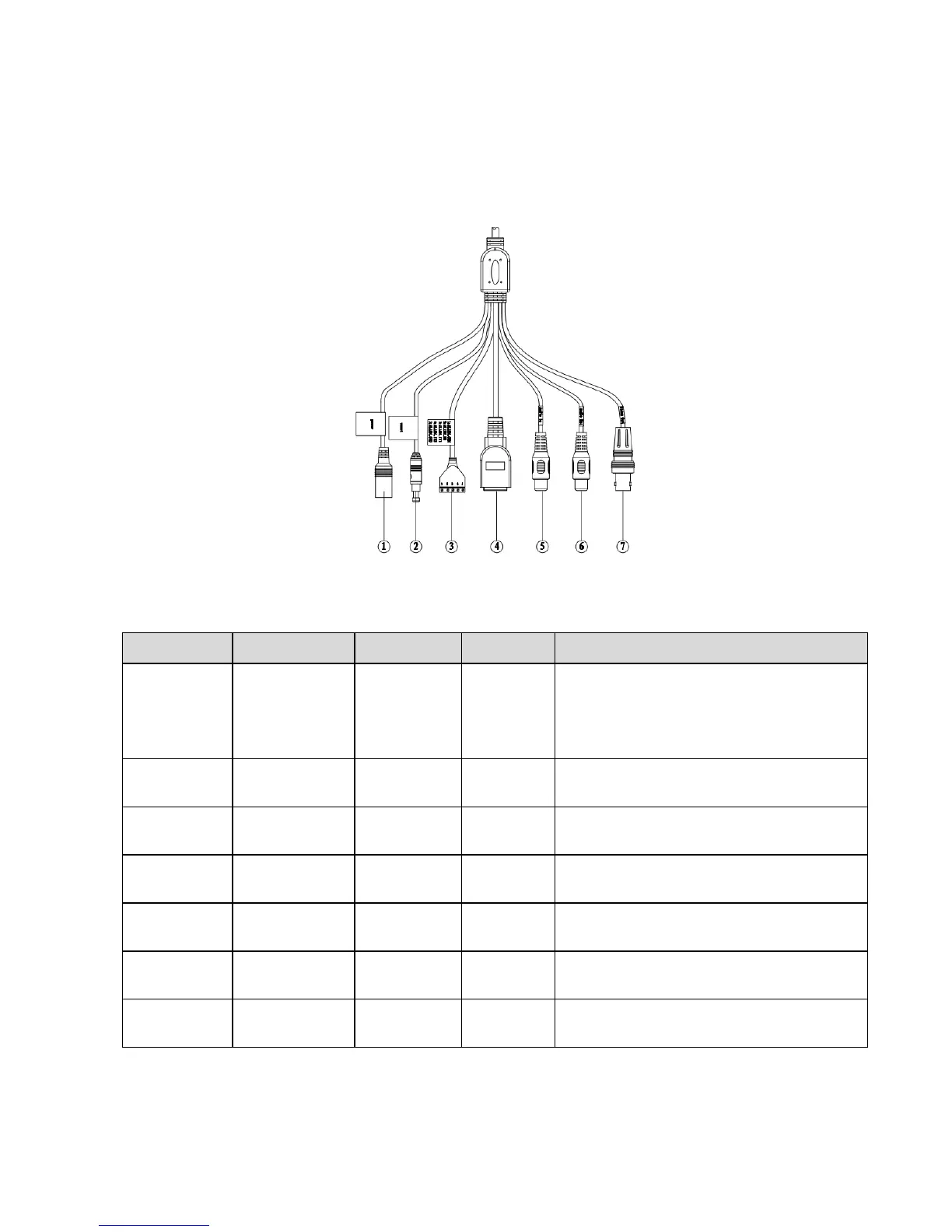

Figure 2-1 Multiple-function combination cable
Please refer to the following sheet for detailed information.
SN
Port Name
Function
Connection
Note
1
DC12V/AC24V
Power input
port
/
Power port. Input DC 12V or AC 24V.
(convertor is required)
Note:
Please refer to actual device label.
2
RESET
Reset button
/
The reset button is to restore device factory
default setup. Press 3~5 seconds.
3
I/O
I/O cable
port
/
Includes alarm input and output.
4
LAN
Network port
Ethernet
port
 Connect to standard Ethernet cable.
5
AUDIO IN
Audio input
port
RCA
Input audio signal. It can receive the
analog audio signal from the pickup.
6
AUDIO OUT
Audio output
port
RCA
Output audio signal to the devices such as
the sound box.
7
VIDEO OUT
Video output
port
BNC
Output analog video signal. It can connect
to the TV monitor to view the video.
Please refer to the follow sheet for detailed pin information.
