6
3 Wiring
At most 2 door stations and 3 indoor monitors can be wired in one communication system.
Preparations

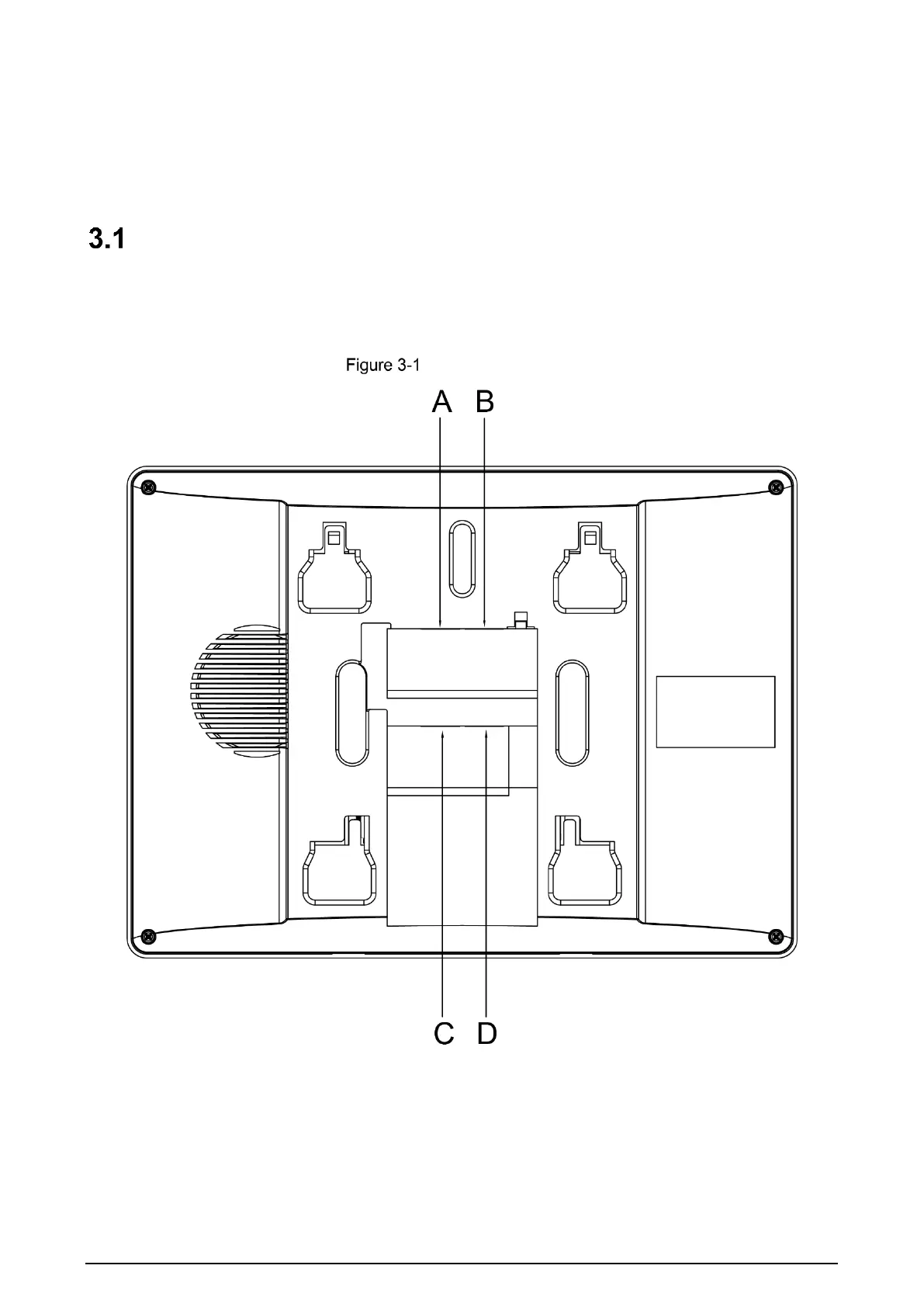

3.1.1 Port Connection Rules
Port connection rules
Port A of an indoor monitor can be connected to Port C of another indoor monitor to do
data communication.
Port B of an indoor monitor can be connected to Port D of another indoor monitor to do
data communication.
Port A of an indoor monitor cannot be connected to Port B or D of another indoor monitor to
do data communication.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua KTA02 and is the answer not in the manual?

Dahua KTA02 Specifications

General IconGeneral
ModelKTA02
CategoryIntercom System
SystemEmbedded Linux
Network ProtocolTCP/IP
InstallationWall-mounted
Tamper SwitchYes
Card TypeIC card
Network10/100M Ethernet
Power SupplyDC 12V
Operating Humidity10%–90% (RH), non-condensing
Unlock ModeCard, password, remote
Exit Button1
Door Contact Detect1
Lock Control1
