Dahua N42C3P

User's Manual
5

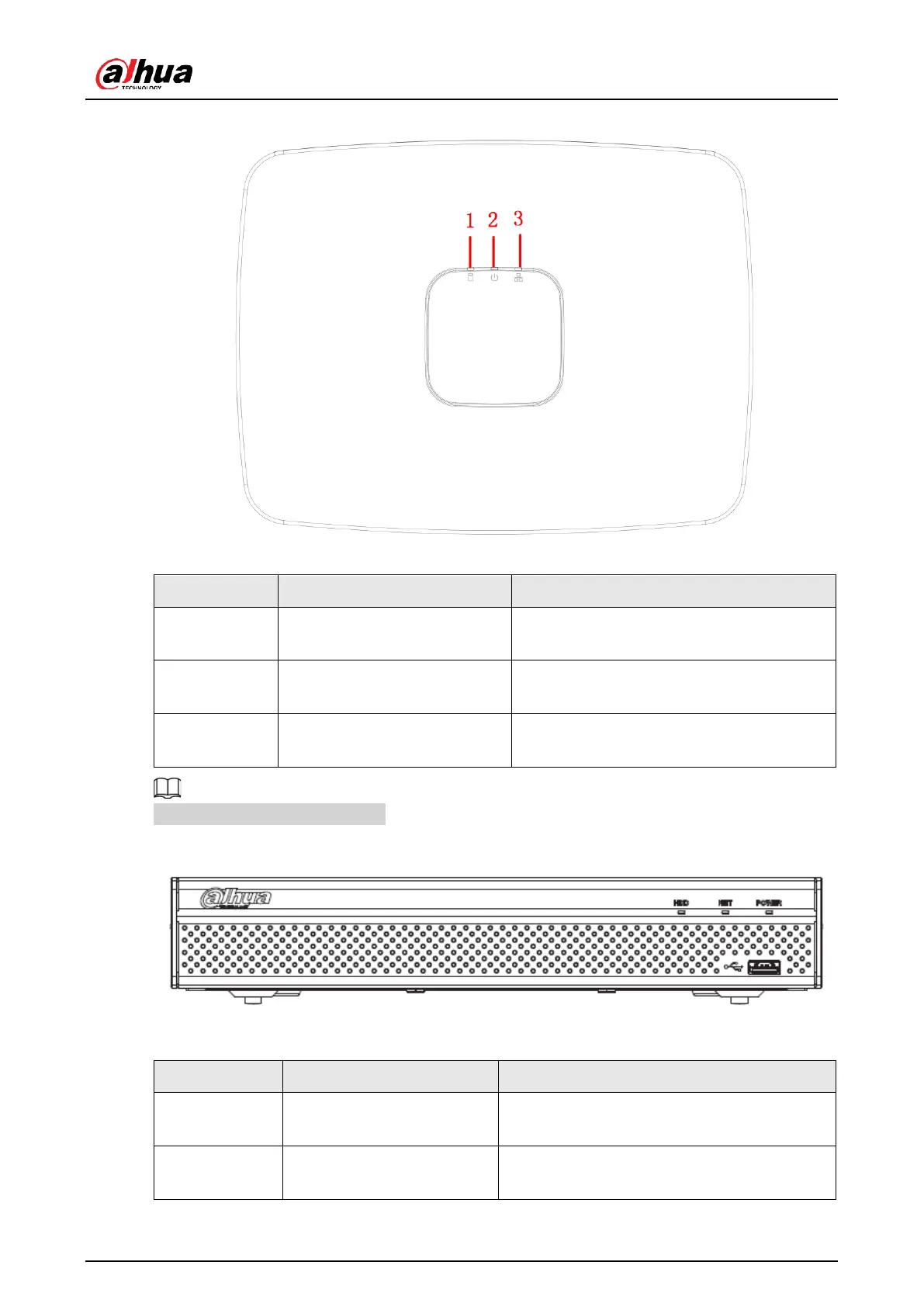

Figure 2-2 Front panel
Table 2-1 Icons
No.
Name
Function
1
HDD status indicator light
The red light becomes on when HDD is
abnormal.
2
Power indicator light
The red light becomes on when the
power connection is normal.
3
Network status indicator
light
The red light becomes on when the
network connection is abnormal.
The figure is for reference only.
Figure 2-3 Front panel
Table 2-2 Icons
Icon
Name
Function
HDD
HDD status indicator light
The blue light is on when the HDD is
malfunction.
NET
Network status indicator
light
The blue light is on when the network
connection is abnormal.
