2.1.14 NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-XI/
NVR608RH-XI/NVR58RH-XI/NVR58H-XI Series
The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-XI/
NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below.

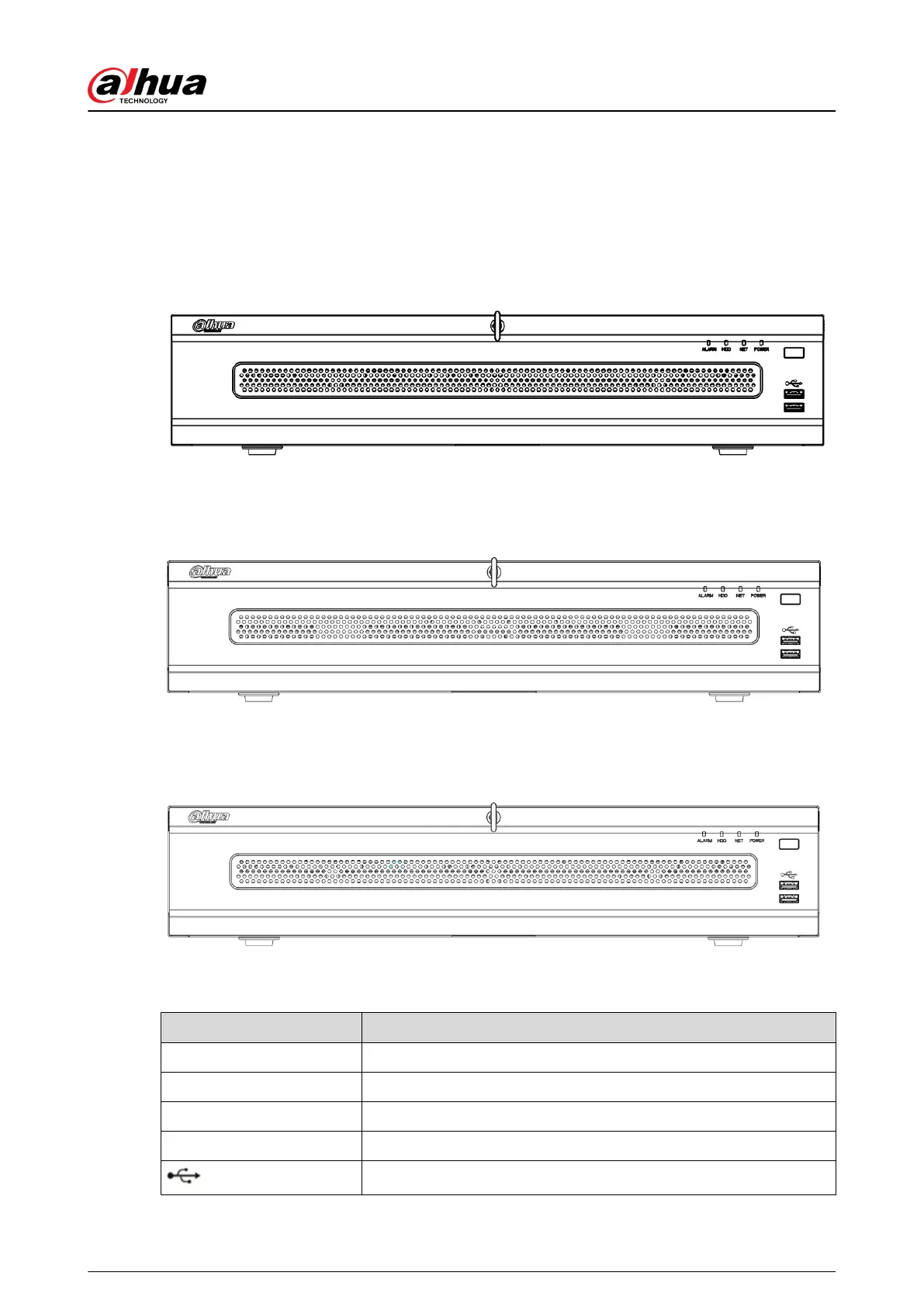

Figure 2-29 Front panel
The NVR58RH-XI front panel is shown as below.
Figure 2-30 Front panel
The NVR58H-XI front panel is shown as below.
Figure 2-31 Front panel
Table 2-13 Front panel description
Icon
Name
ALARM Alarm indicator light
HDD HDD status indicator light
NET Network status indicator light
POWER Power status indicator light
USB 2.0 port
User's Manual
18
