Step 3 Click Setting next to Schedule to congure the alarm schedule.
Step 4 Congure alarm linkage. For details, see Table 5-50 .
Step 5 Click Apply.
5.10.5.5 PIR Alarm
PIR function helps enhancing the accuracy and validity of motion detect. It can lter the
meaningless alarms that are activated by the objects such as falling leaves and ies. The detection
range by PIR is smaller than the eld angle.
Background Information
PIR function is enabled by default if it is supported by the cameras. Enabling PIR function will get
the motion detection to be enabled automatically to generate motion detection alarms.
Procedure
Step 1 Select Main Menu > Alarm Settings > Video Detection > PIR.

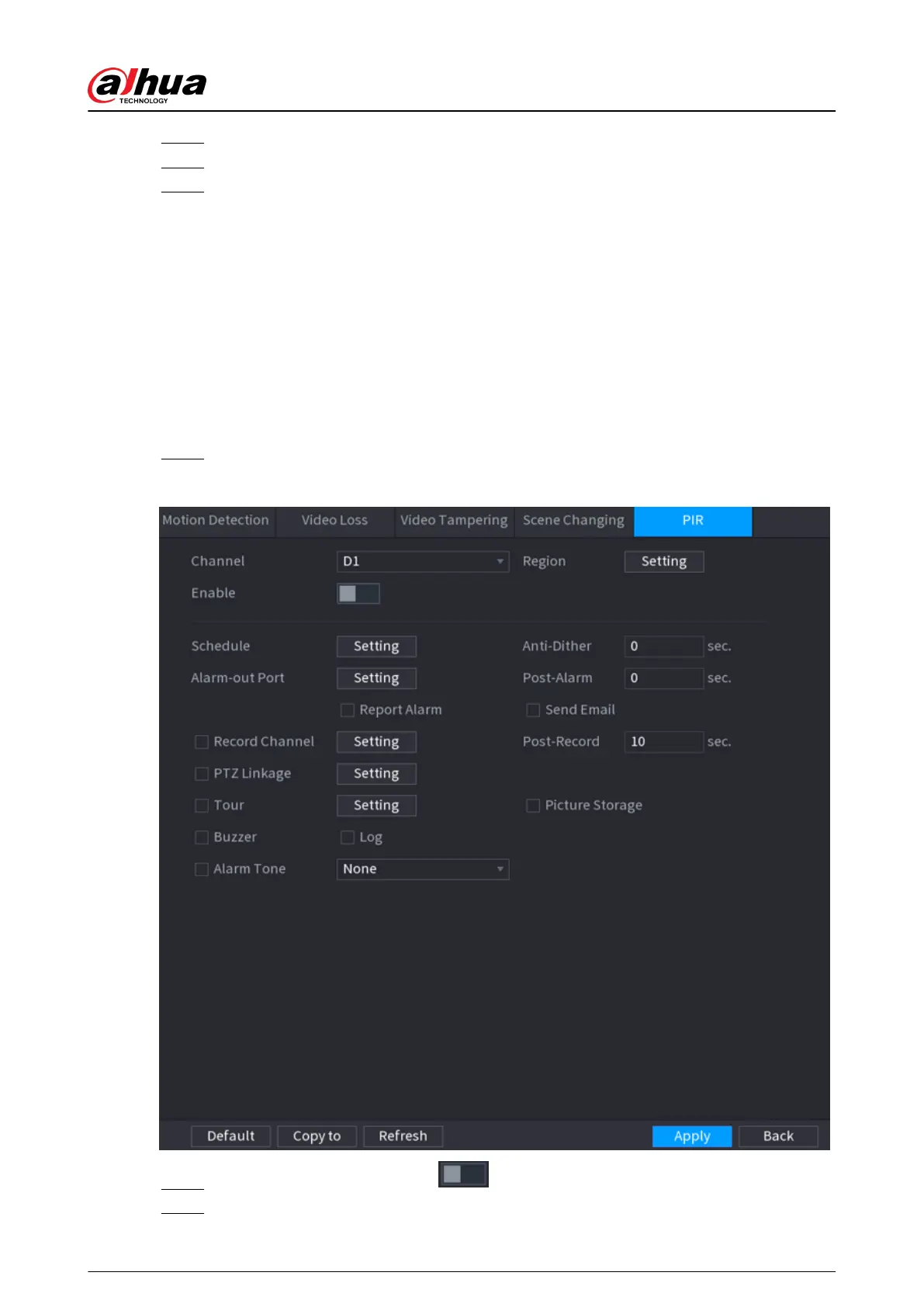

Figure 5-213 PIR
Step 2 Select a channel and then click to enable the function.
Step 3 Congure the detection region.
User's Manual
336
