Dahua SD6980-HN User Manual

19

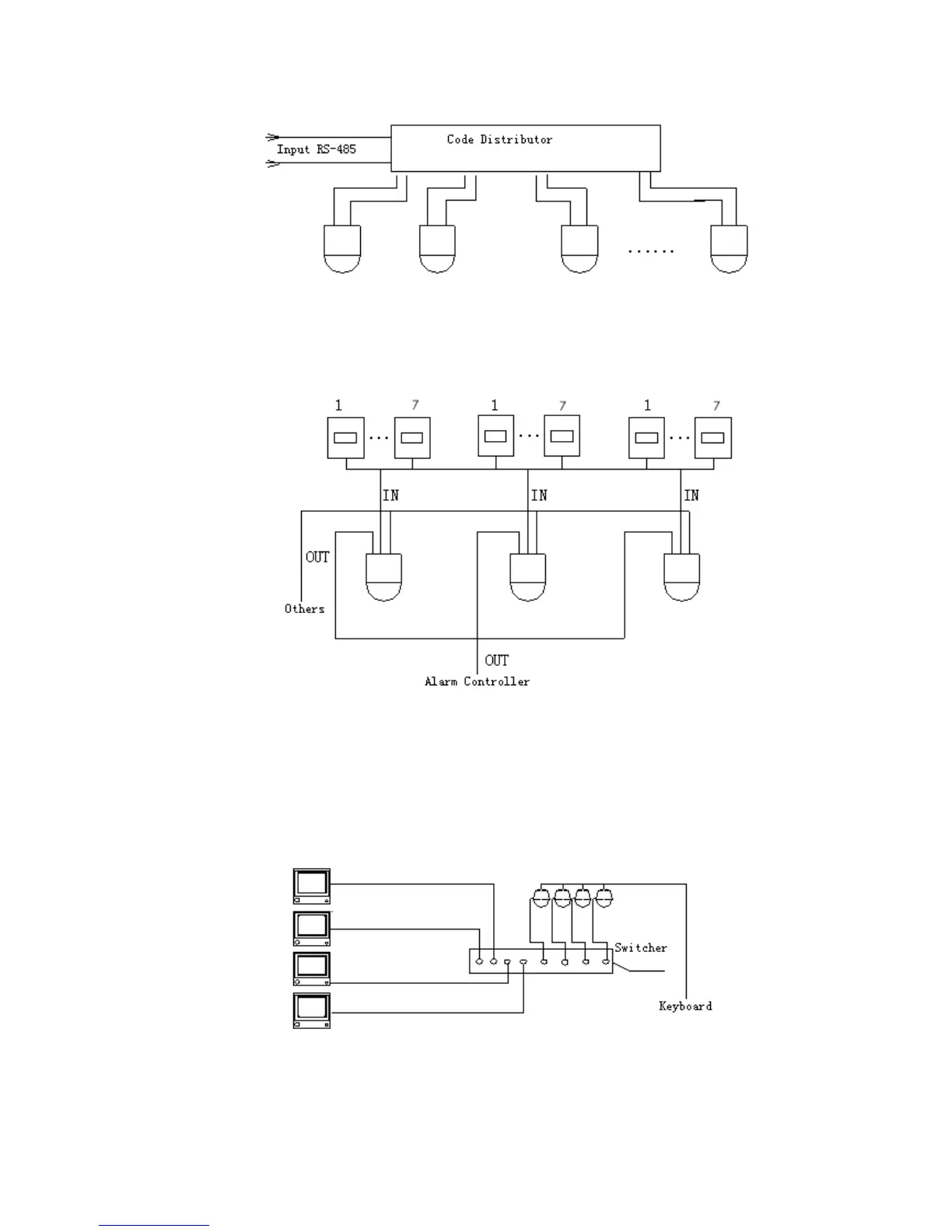

Figure 3-7
3.2.2 Alarm Connection
Please refer to Figure 3-8 for alarm connection information.
Figure 3-8
3.2.3 Keyboard Connection
This series dome supports keyboard operation. You can use keyboard to control the dome and PTZ. The
display and control can work simultaneously. One keyboard can control maximum 255 speed domes.
Please refer to Figure 3-9.
Figure 3-9
This IR speed dome protocol is open and supports multiple popular system platforms in today’s market.
