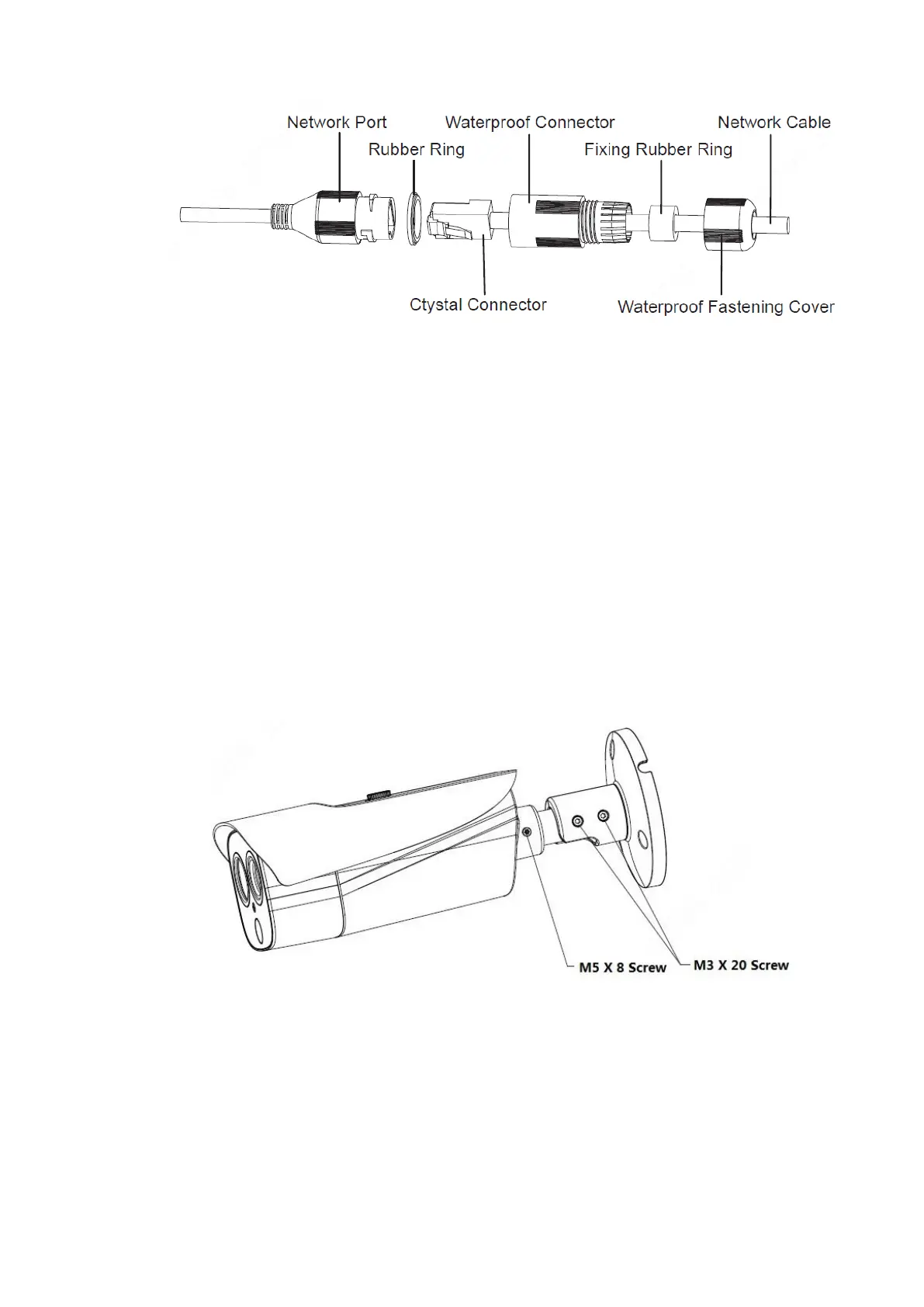

Figure 3-2
1. Keep the convex groove outward and install the rubber ring into the network port, keep the smaller hole
of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof
connector.
2. Pull the network cable without crystal head through main body of waterproof connector, fixing rubber ring
and waterproof locking cover, make the crystal head of network cable, and then insert it into the network
cable.
3. Put the main body of waterproof connector on the network port and rotate it clockwise to lock the
network port and waterproof connector firmly.
4. Put the waterproof locking cover on the main body of waterproof connector and rotate it clockwise to
lock the waterproof connector and waterproof locking cover firmly.
Step 4
Adjust device angle.
Figure 3-3
1. Use inner hex screwdriver to loosen the adjusting screw.
2. Adjust the device UDLR, set device monitoring direction well according to the requirements.
3. Use inner hex screwdriver to tighten the adjusting screws firmly.
