Dahua VTH16 Series User Manual

Device Installation 21

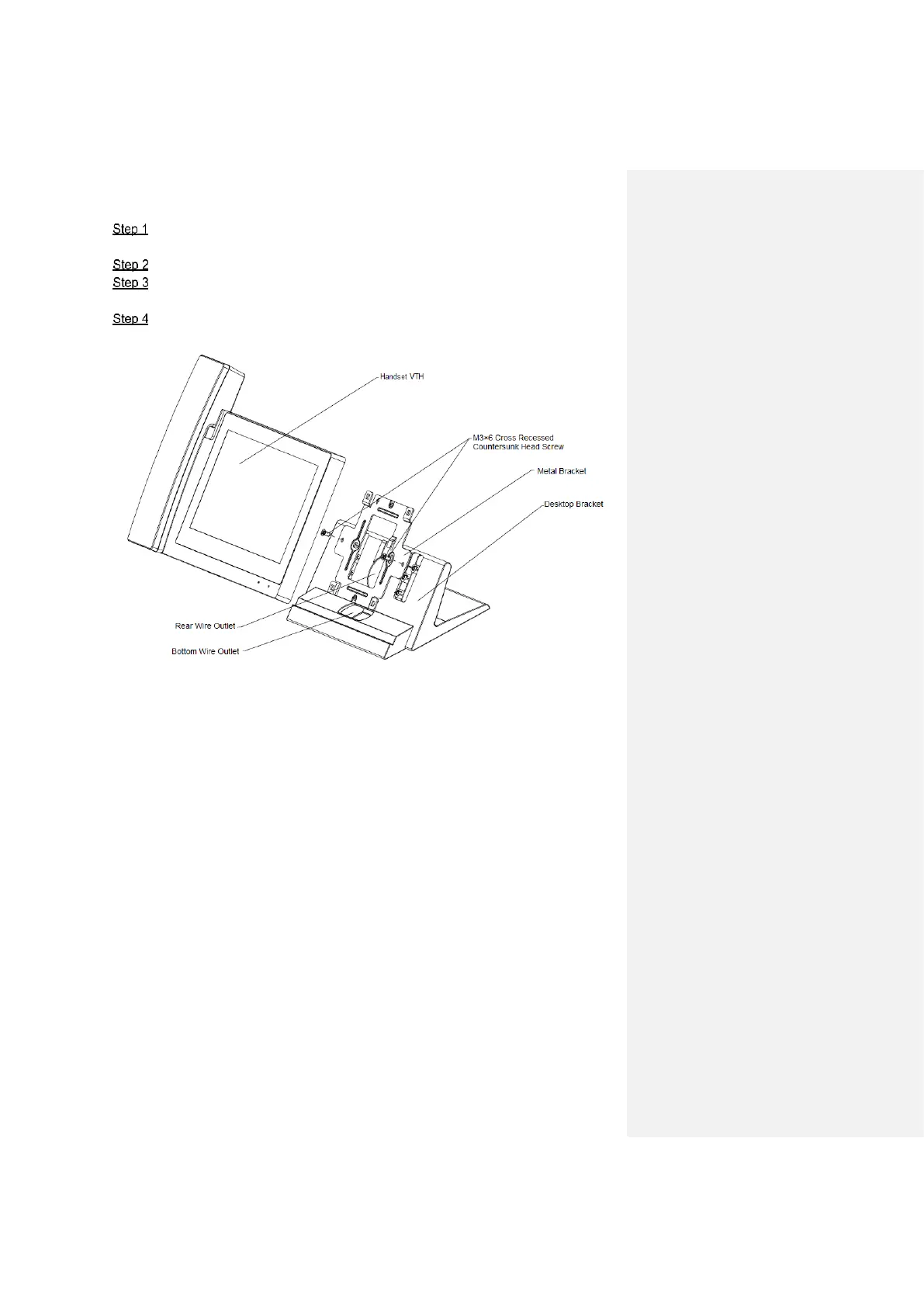

With two M3×6 cross recessed countersunk head screws, tighten the metal bracket
onto the top two nuts of desktop bracket.
Please connect wire by reference to Figure 2-10.
After wiring, guide the wire through wire outlet in the rear or at the bottom of desktop
bracket.
Put the handset VTH along slot at the top of metal bracket, and install it into the
bracket.
Figure 4-4
