Step 2. In System Time tab, click on Sync PC to make VTO time the same with PC.

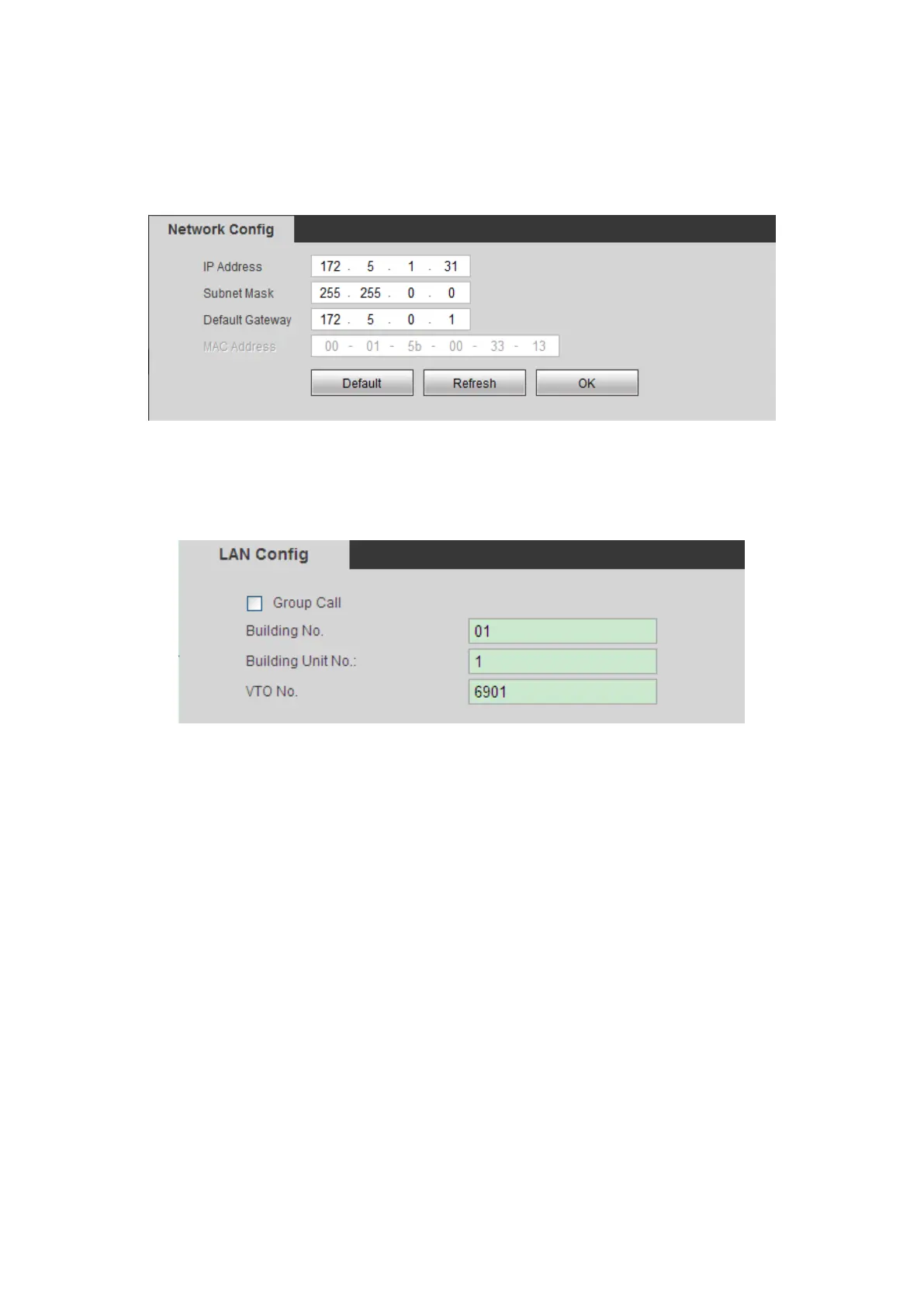

Step 3. Select System Config>Network Config, set VTO IP, Subnet Mask and Default
Gateway. See Figure 4- 3.
Figure 4- 3
Step 4. (Optional) If VTO connects to VTMS platform, System Config>LAN Config, set
Area No. Section No. Building No. And etc. These parameters must match settings
on VTO as in Figure 4- 4. Please refer to Appendix 2 and 3. See Figure 4- 5.
Figure 4- 4
