Dahua VTO6 Series

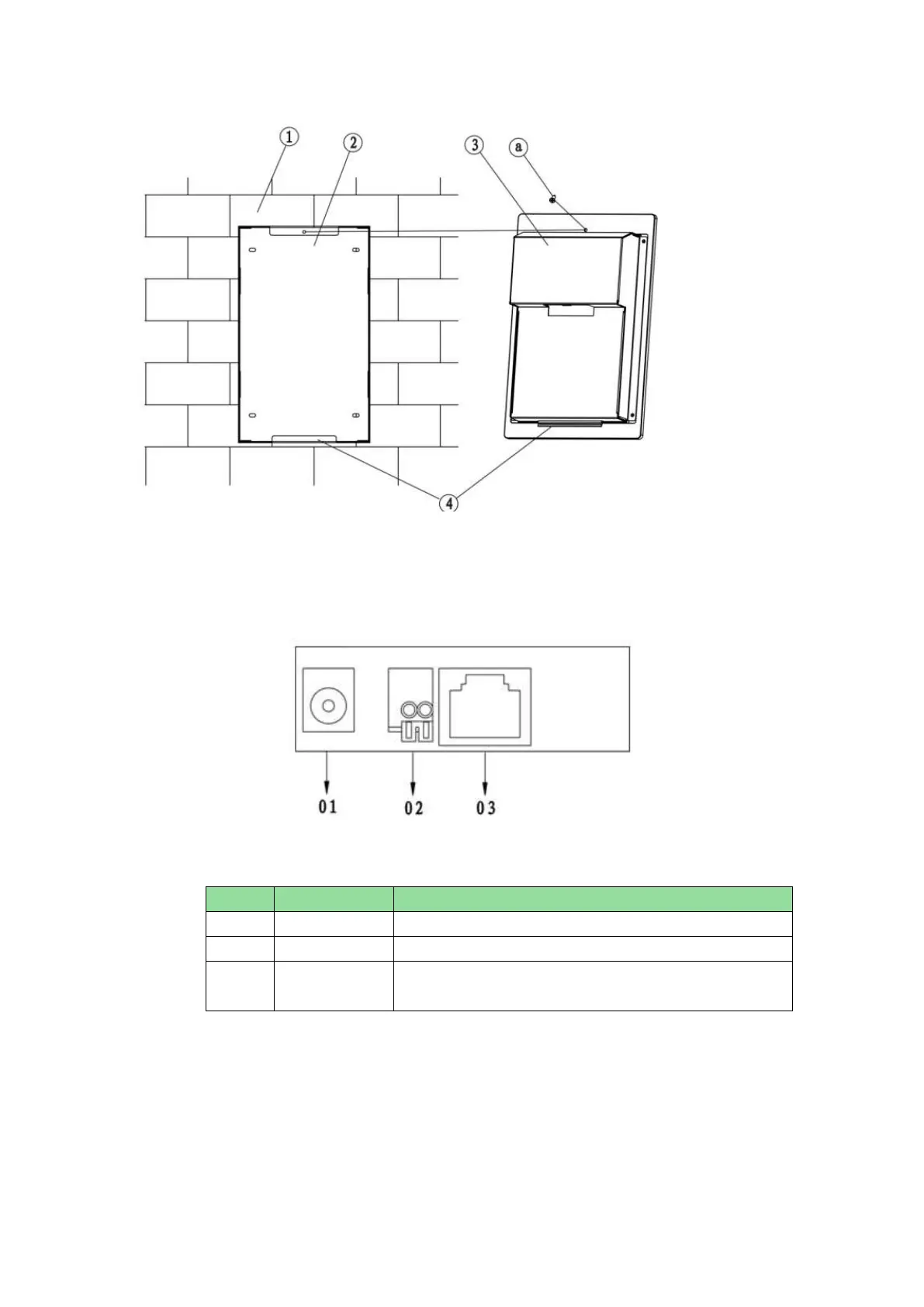

Figure 2- 2
2.3.3 Wiring
See Figure 2- 3.
Figure 2- 3
No.
Port Name
Note
01
Power
Input DC 12V
02
Lock Port
Connect access control extension module
03
Network Port
1
Plug in RJ45 cable
2.4 VTO6110B/VTO6210B/VTO6110BW
2.4.1 Dimension
Before you install the device, please make sure you know the dimension of device and
