Dahua VTO6 Series Installation Guide

select appropriate installation method. See Figure 2- 4.

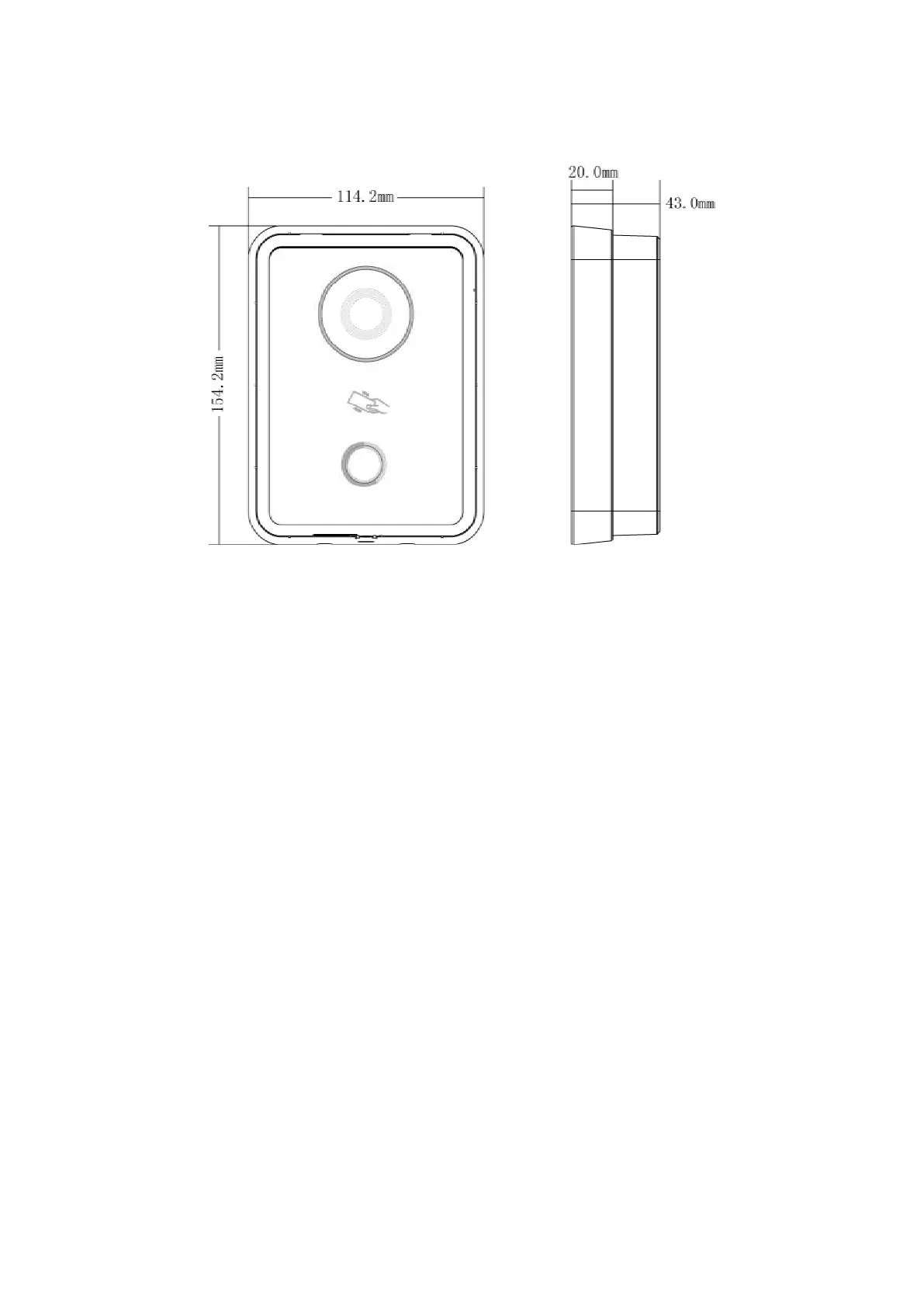

Figure 2- 4 VTO6110B/VTO6210B/VTO6110BW
2.4.2 Installation Step
Here makes VTO6210B as an example. Installation of VTO6110B and
VTO6110BW may refer to VTO6210B.
Step 1. Fix installation bracket on wall.
a) Use M4 screw in accessories, to fix bracket onto 86 box (b in Figure 2- 5).
b) After 86 box is locked, fix ST3.0 screw in accessories onto wall. (c in Figure 2- 5)
Step 2. Fix device unit ① onto installation bracket, fasten top edge and lightly push
bottom edge.
Step 3. Use M3 screw to fix device and bracket.

Dahua VTO6 Series Specifications

General

Brand	Dahua
Model	VTO6 Series
Category	Intercom System
Language	English
