Dahua VTO6 Series Installation Guide

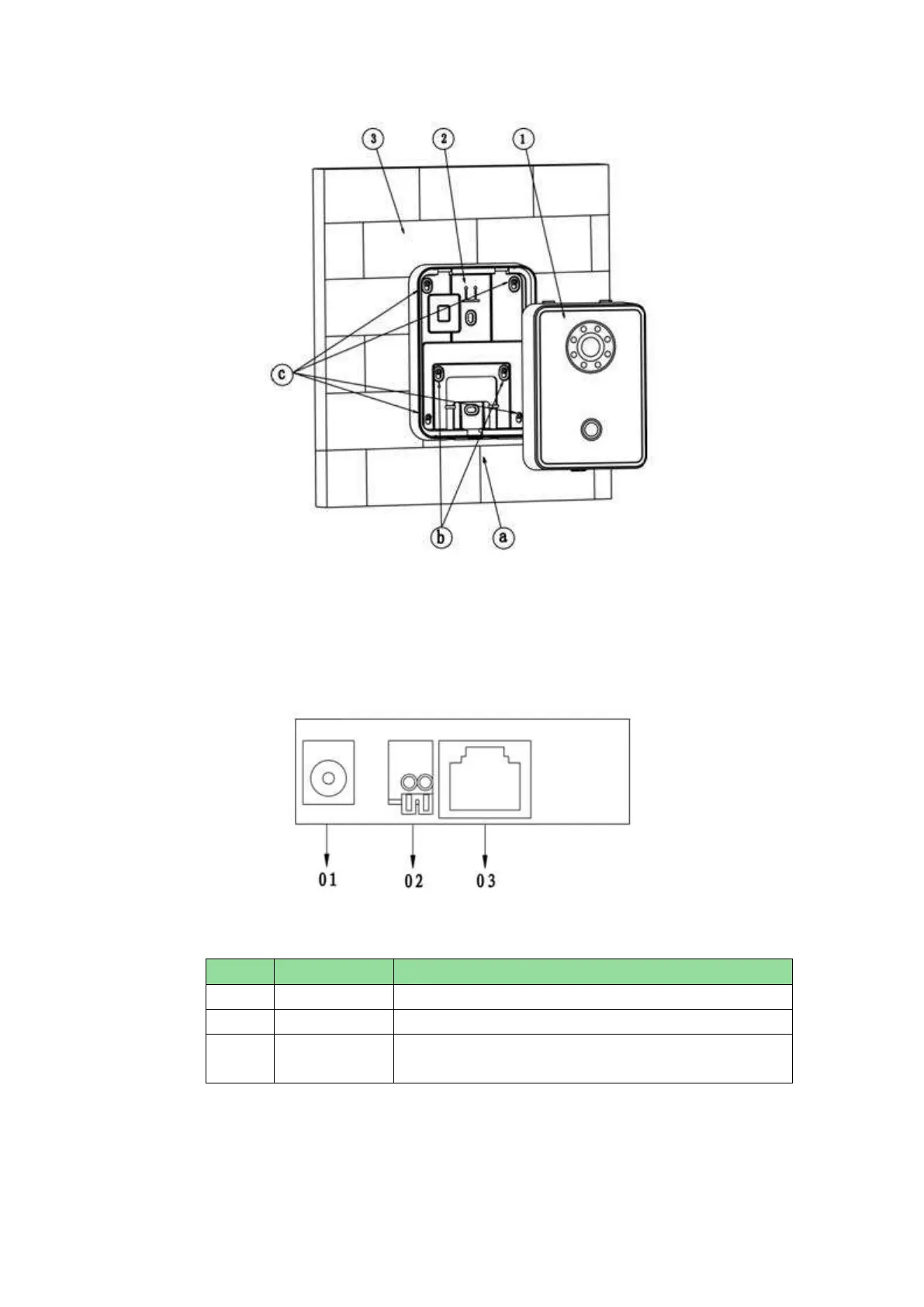

Figure 2- 5
2.4.3 Wiring
This chapter introduces wiring between VTO embedded box and por.t
See Figure 2- 6.
 VTO6110B, VTO6110BW
Figure 2- 6
No.
Port Name
Note
01
Power
Input DC 12V
02
Lock Port
Connect access control extension module
03
Network Port
1
Plug in RJ45 cable
 VTO6210B

Dahua VTO6 Series Specifications

General

Brand	Dahua
Model	VTO6 Series
Category	Intercom System
Language	English
