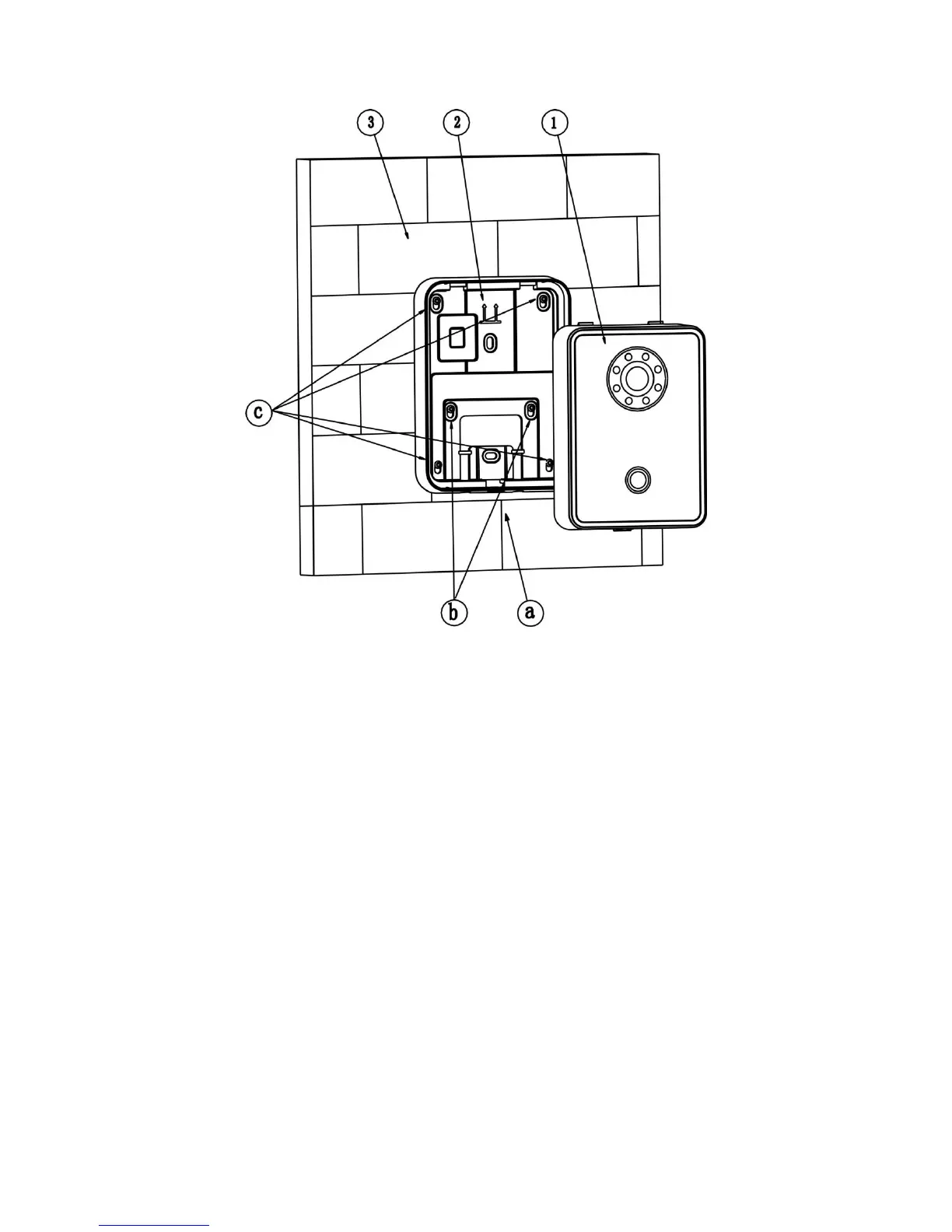

Figure 6- 1
Installation step:
1. Fix installation holder onto wall:
a) Use the M4 screw accompanied with the VTO to fix holder onto the 86 box
(as b in Figure 6- 1);
b) In order to firm the VTO, use the ST3.0 screw accompanied with VTO to fix
the 86 box onto wall after locking the 86 box. (as c in Figure 6- 1);
2. Install ① in Figure 6- 1 onto the holder by pushing from top edge.
3. After you complete the installation between VTO and holder, use the set screw
accompanied to fix the VTO and its holder.
