Dahua VTO6 Series

19

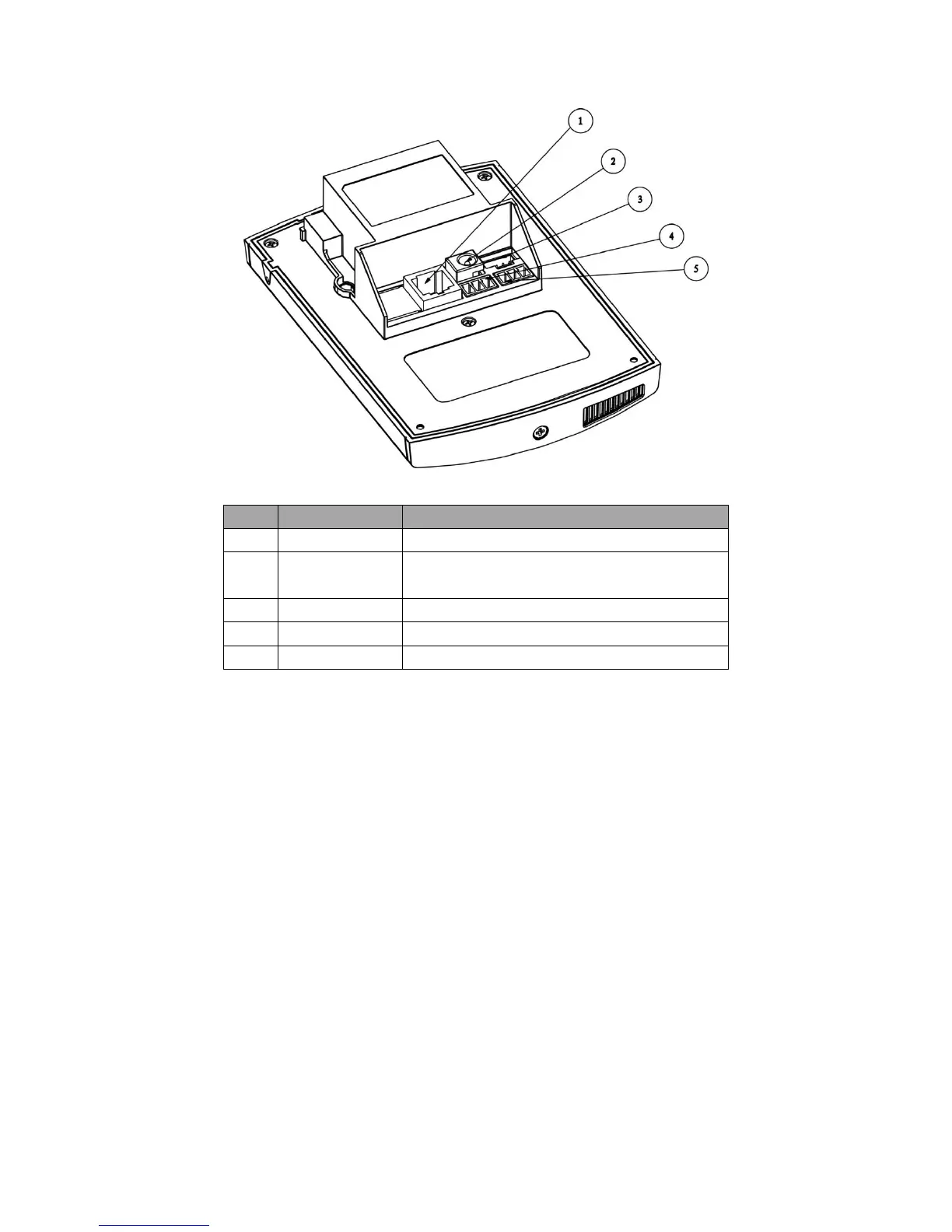

Figure 5- 2
No.
Port Name
Description
1
Network port
Connect to RJ45 port
2
Power supply
port
Connect to 12V DC.
3
Test port
For installer use
4
Green port 1
Connect to lock
5
Green port 2
Connect to door sensor and unlock button
6. Installation Guide
Installation guide of VTO is illustrated in Figure 6- 1.
