错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 10
Name
Description
+12V
12V DC power port
GND
Door sensor feedback
RS-485A
RS485 communication port
RS-485B
VTO3211D-P

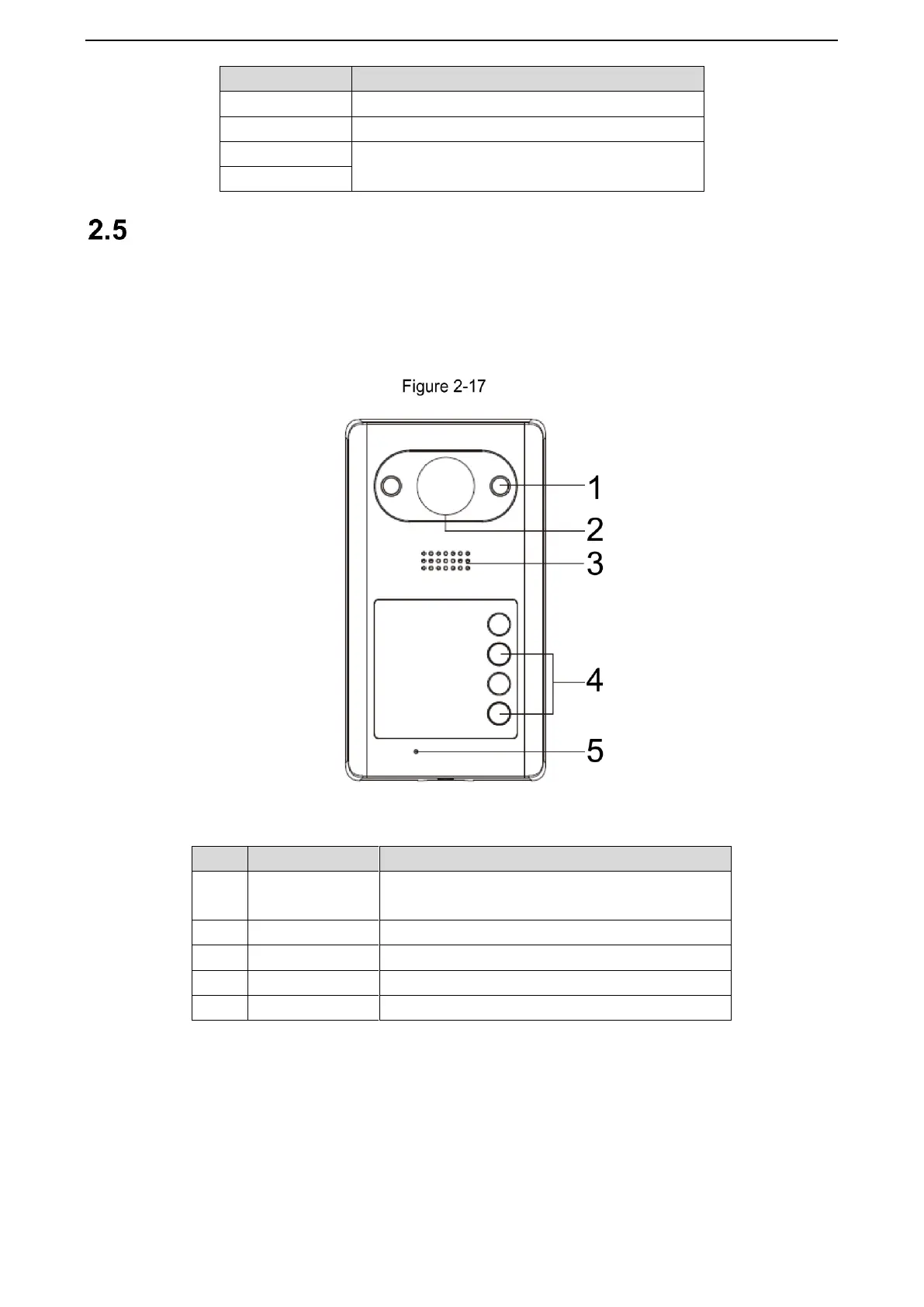

2.5.1 Front Panel
Number of buttons on the front panel varies on different models. VTO3211D-P2 has two buttons;
VTO3211D-P4 has four buttons. The following figures use VTO3211D-P4 as example.
VTO3211D-P
Table 2-10 Front panel description
No.
Name
Description
1
IR Fill light
Provides extra IR light for the camera when it
is dark.
2
Camera
Monitors door area.
3
Speaker
Outputs audio.
4
Call button
Press to call VTH or the management center.
5
MIC
Inputs audio.
