3.4 Installation and removal to a rail
Please use the rail based on the DIN standard of 35mm width.

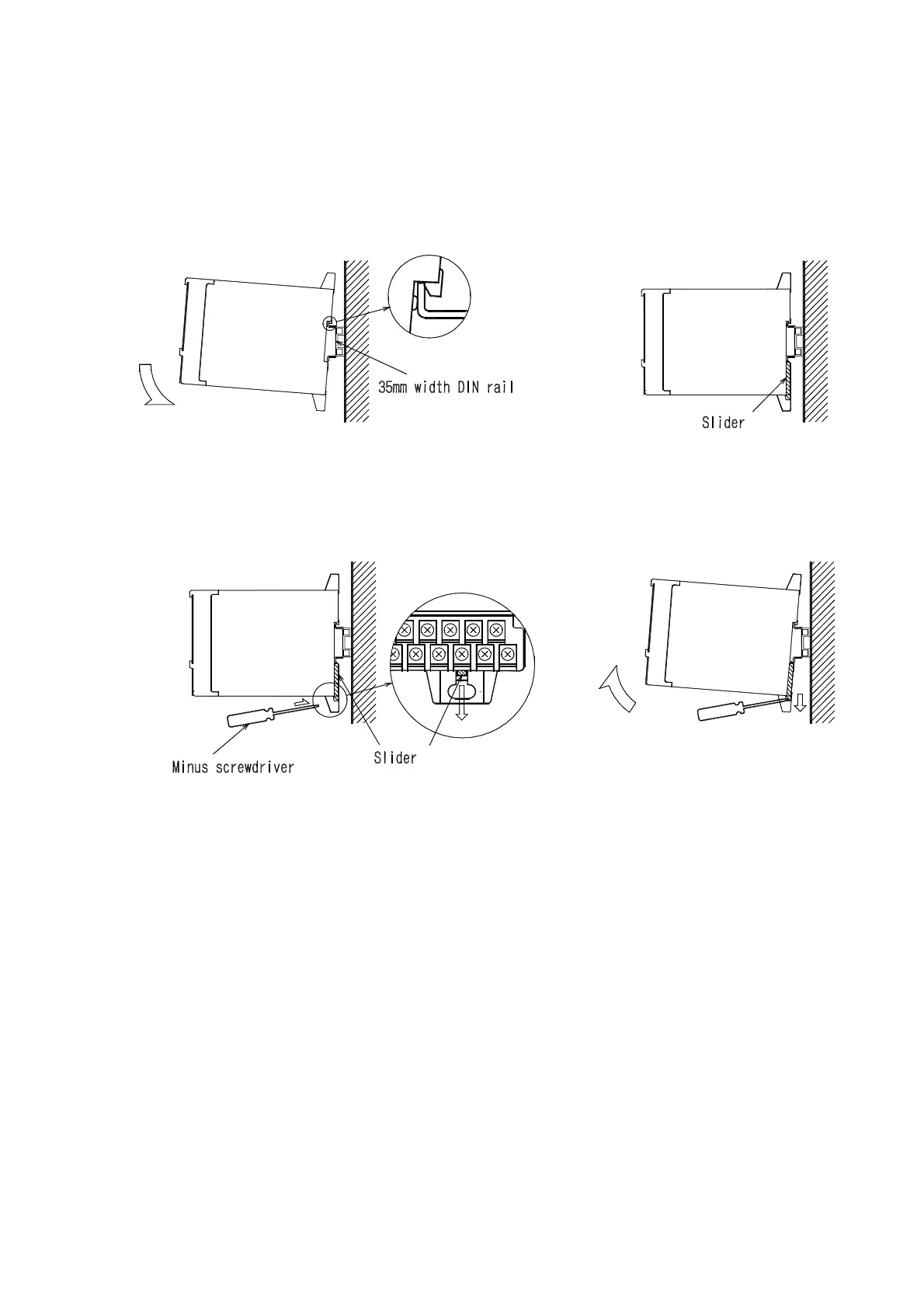

● Rail installation
The upside nail of the slot for rail installation in a BOX bottom is inserted in a rail.
Next, if it pushes against the lower side (arrow), it is fixed with a lower slider.
Ⅰ Ⅱ
● Removal from a rail
A minus screwdriver is inserted in the square socket of a slider. Please pull up BOX to the front, lowering
a minus screwdriver in the direction of an arrow.
Caution) BOX may be damaged, if BOX is pulled up without lowering a slider completely.
Ⅲ Ⅳ
