Daiichi Electronics HSQT2-93A - Explanation of Front Switch; Setting of Shipment

Q-208-081
13

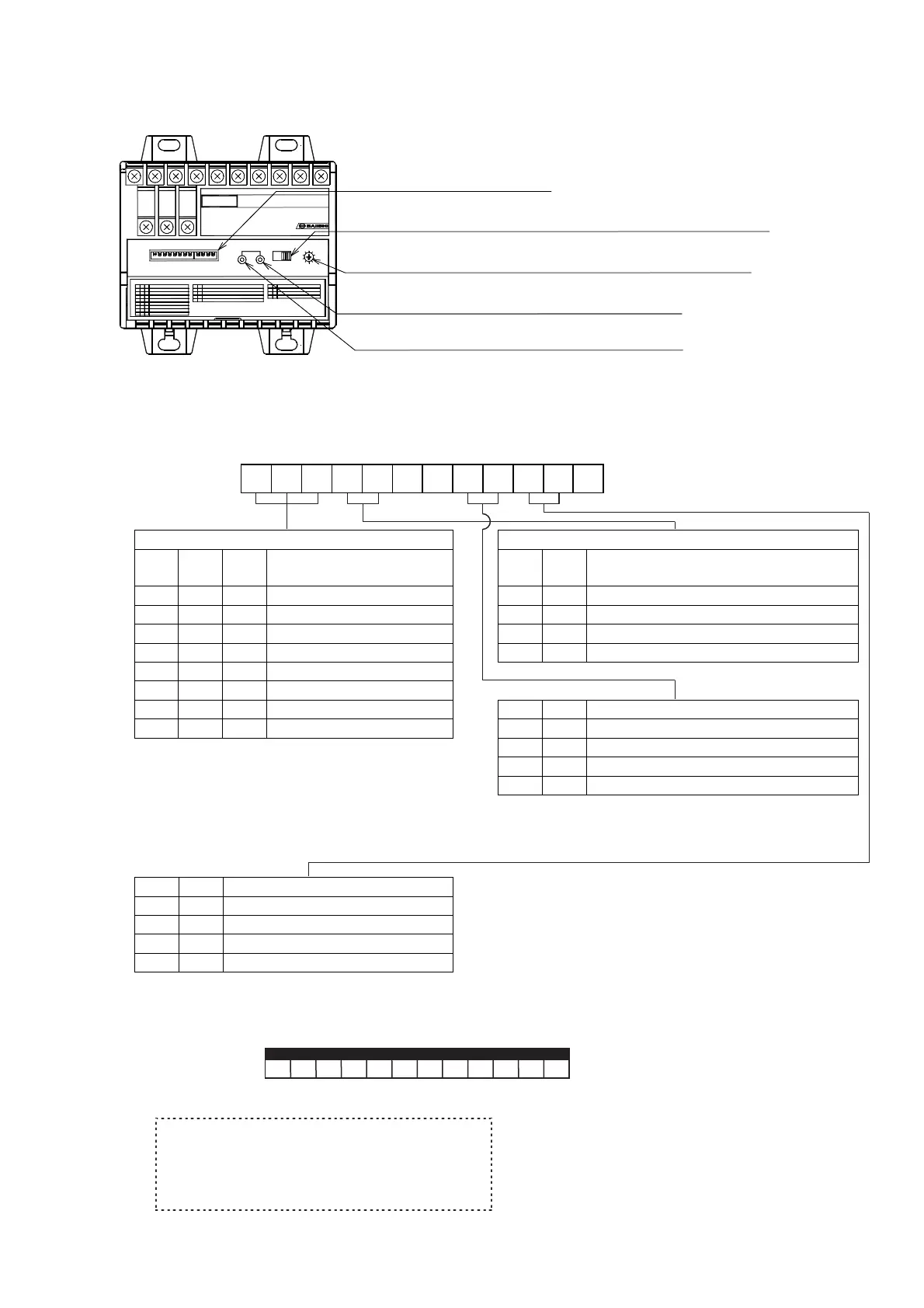

3.7 Explanation of front switch
OUTPUT NO.
Hz SCALING
POWER LINE TRANSDUCER
0～1kW (0～200W)
0～750W (0～150W)
±833.3W (±166.7W)
0～500W (0～100W)
0～833.3W(0～166.7W)
±1kW (±200W)
±750W (±150W)
±500W (±100W)
1
1
0
1
1
0
0
1
1
0
1
1
1
0
1
0
0
0
S1
00
1
0
0
1
S3S2 W SCALING
LAG/LEAD 1kvar (LAG/LEAD 200var)
LAG/LEAD 833.3var(LAG/LEAD 166.7var)
LAG/LEAD 750var (LAG/LEAD 150var)
LAG/LEAD 500var (LAG/LEAD 100var)
FUNCTION SW [S1～S9] 110V,5A(1A)
11
S5
0
0
1
S4
0
1
0
var SCALING
0
1
0
S8
45～55Hz
55～65Hz
45～65Hz
0
0
1
S9
・S1 ・・・ ・・
UP
S12S9S8 ・・
ON
OFF
HIGH SPEED
MULTI
MAX.
DOWN
ADJUST
OFF
3
BIAS
4
Factor number setting for output adjustable. (Rotary switch)
MAX./OFF/BIAS change over for output adjustable. (Slide switch)
UP setting for output adjustable. (Push switch)
DOWN setting for output adjustable. (Push switch)
Scaling function. (DIP swich)
210
1
9
8
6
57
TYPE
HSQT2-93A
<
Caution > Setting change of a DIP switch becomes effective by applying an auxiliary supply again.
● Measurement range
A measurement range (active power, reactive power, frequency) can be altered with a front DIP switch.
DIP switch
ON (1)
OFF(0)
S12S11S10S9S8S7S6
S5S4S3S2S1
W measurement range var measurement range
S1 S2 S3
Input 110V 5A
( ) is 1A rating.
S4 S5
Input 110V 5A
( ) is 1A rating.
0 0 0 0～1kW (0～200W) 0 0 LAG/LEAD 1kvar (LAG/LEAD 200var)
0 0 1 0～833.3W (0～166.7W) 0 1 LAG/LEAD 833.3var (LAG/LEAD 166.7var)
0 1 0 0～750W (0～150W) 1 0 LAG/LEAD 750var (LAG/LEAD 150var)
0 1 1 0～500W (0～100W) 1 1 LAG/LEAD 500var (LAG/LEAD 100var)
1 0 0 ±1kW (±200W)
1 0 1 ±833.3W (±166.7W)
1 1 0 ±750W (±150W) S8 S9 Hz measurement range
1 1 1 ±500W (±100W) 0 0 45～55Hz
0 1 55～65Hz
1 0 45～65Hz
1 1 ー
● Count setup of moving average.
With a front DIP switch (S10, S11), the count of a moving average of current, voltage, power, and
reactive power can be altered.
S10 S11 Count of moving average
0 0 With no average
0 1 2 times
1 0 3 times
1 1 －
3.9 Setting of shipment (In case there is no designation at standard product.)
DIP switch
OFF (0)
ON
(1)
In case of input rating 110V and 5A.
W measurement range 0～1kW
var measurement range LEAD 1～0～LAG 1kvar
Hz measurement range 45～55Hz
Count of moving average With no average
S1 S12
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(-)
(
11
)
Note (
11
) Please use DIP switch S12 in the status at
the case of shipment.
