Removal of Outdoor Fan / Fan Motor Si12-891
16 Removal Procedure

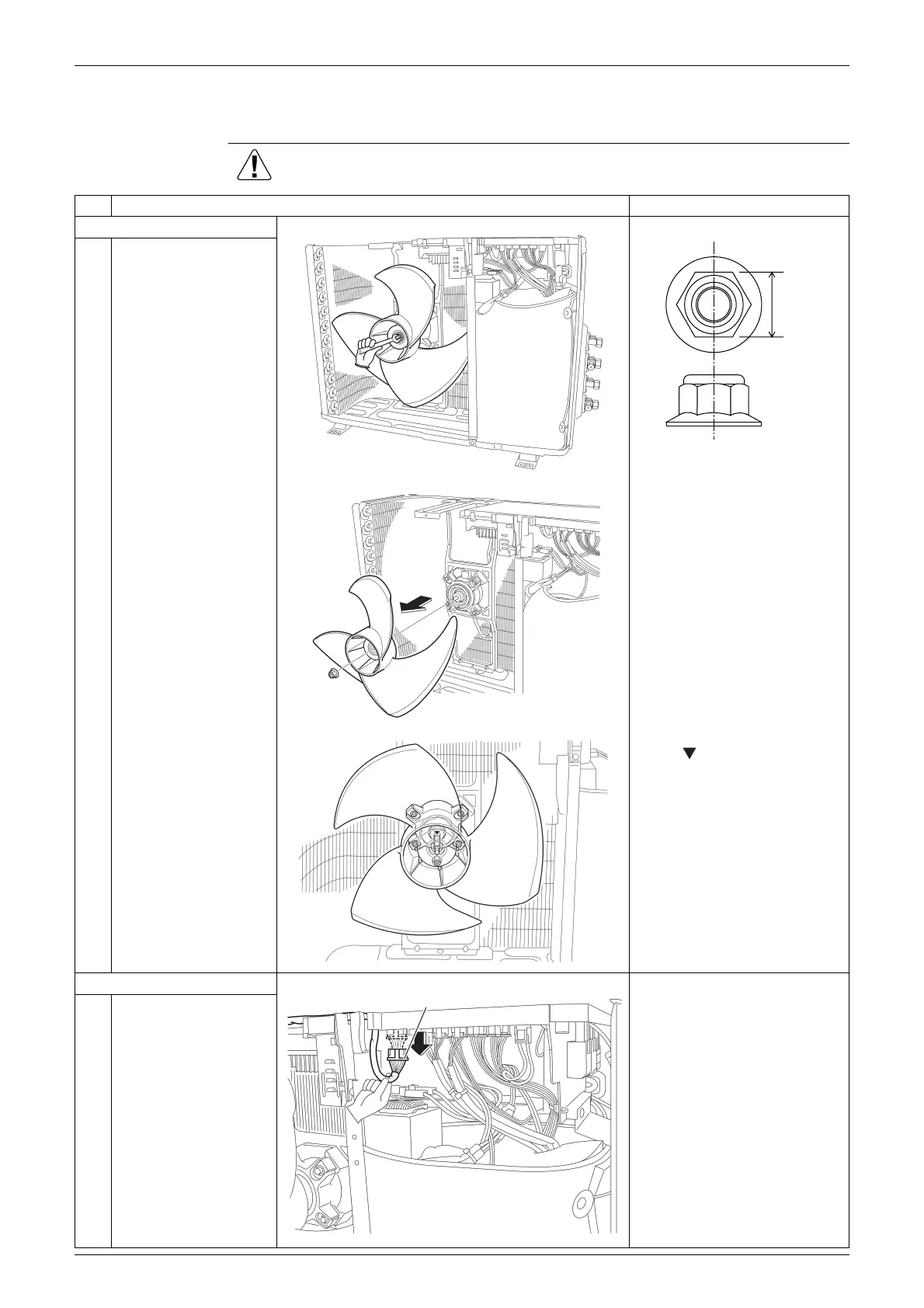

5. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan.

Nut size: M6
1
Remove the washer
fitted nut.
2
Remove the outdoor
fan.

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
(R7618)
10 mm
(R12236)
(R7619)
(R7620)
[S70]
(R7621)
