Daikin 2AMK40FV1B - Removal of Electrical Box

Removal of Electrical Box Si12-891
4 Removal Procedure

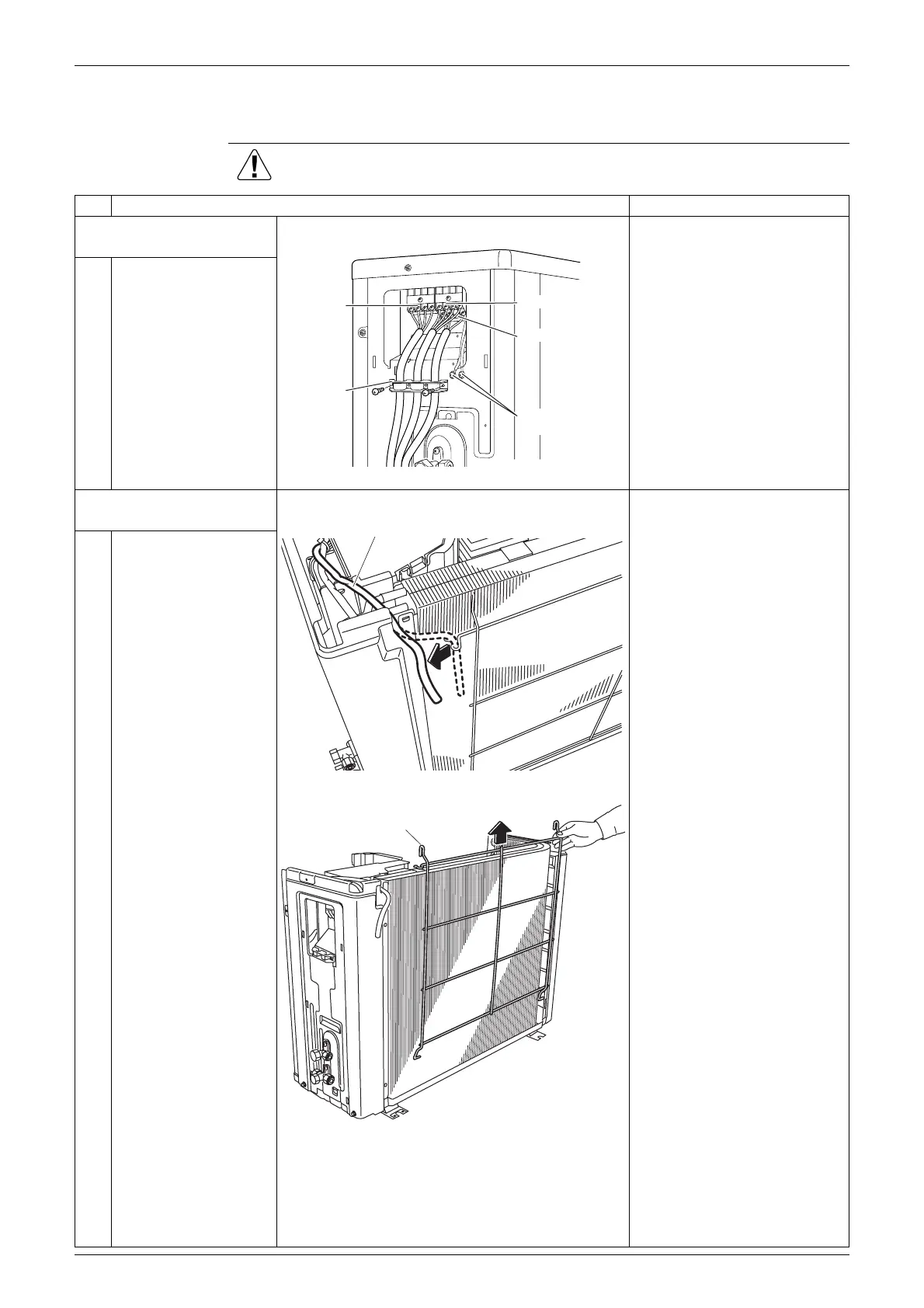

2. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Disconnect the
connecting wires.

When reassembling, fasten
the wires with screws on the
terminal board.
1
Remove the 2 screws
of earth wires.
Remove the 2 screws
and remove the wiring
fixture.
Then remove all the
screws to disconnect
the power supply
cables and the
connecting wires.
2. Remove the electrical
box.
1
Release the outdoor
temperature thermistor.
2
Lift up the guard net
and remove it.
4
4
P
Room A
Room B
Power supply
(R7573)
Screw of
earth wire
Wiring
fixture
(R7208)
Outdoor temperature thermistor
Guard net
(R7209)
