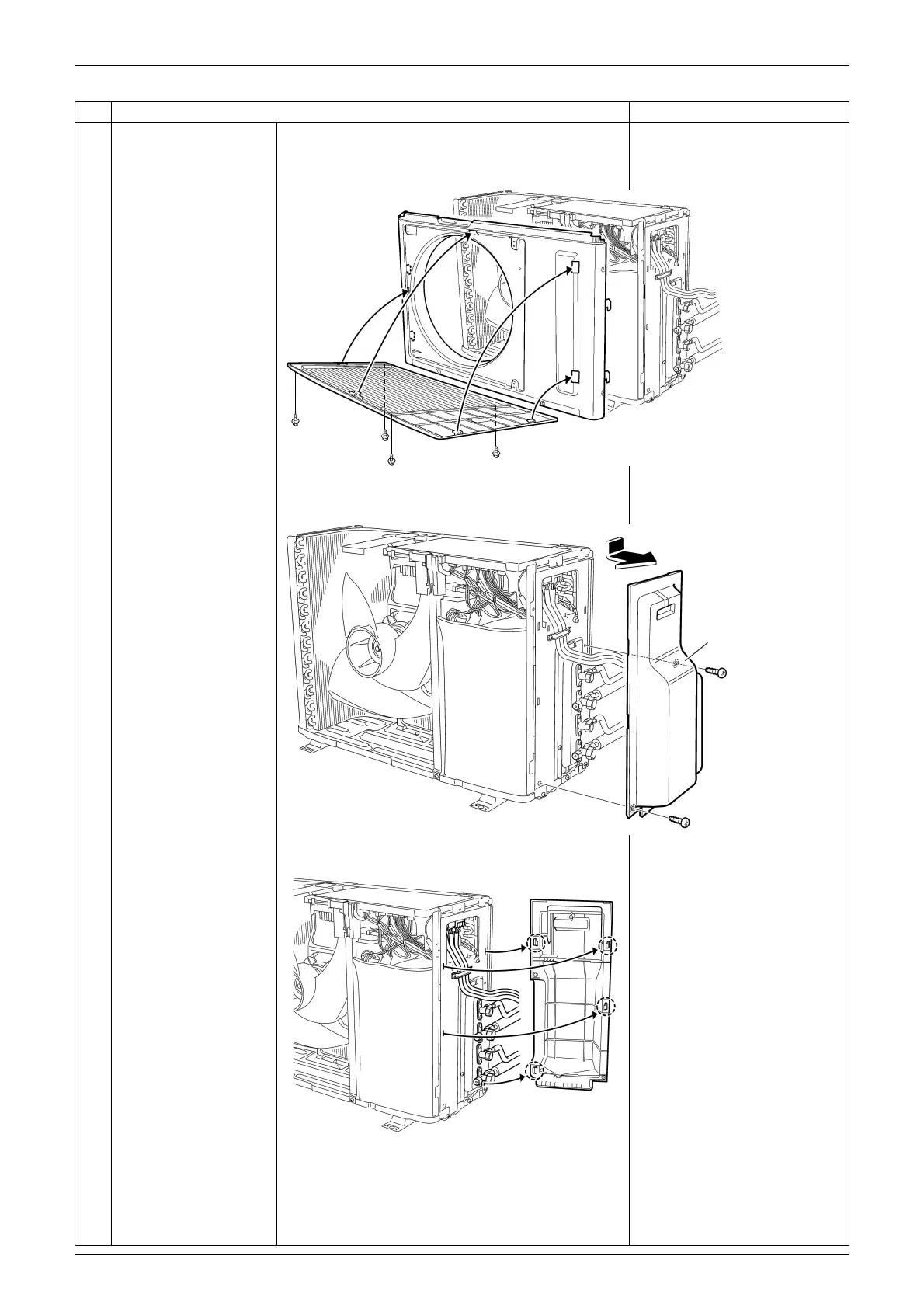

Si12-891 Removal of Outer Panels
Removal Procedure 3
4
Remove the 4 screws
and remove the
discharge grille.
When reassembling, make
sure to fit the 4 hooks.
5
Remove the 2 screws
and remove the stop
valve cover.
When reassembling, make
sure to fit the 4 hooks.
Step
Procedure Points
(R12767)
(R7699)
Stop
valve
cover
(R7701)
