Daikin 2AMK40FV1B - Removal of Expansion Valves and Four Way Valve; Remove Peripheral Components; Remove Expansion Valves and Four Way Valve

Si12-891 Removal of Four Way Valve / Outdoor Electronic Expansion Valves
Removal Procedure 21

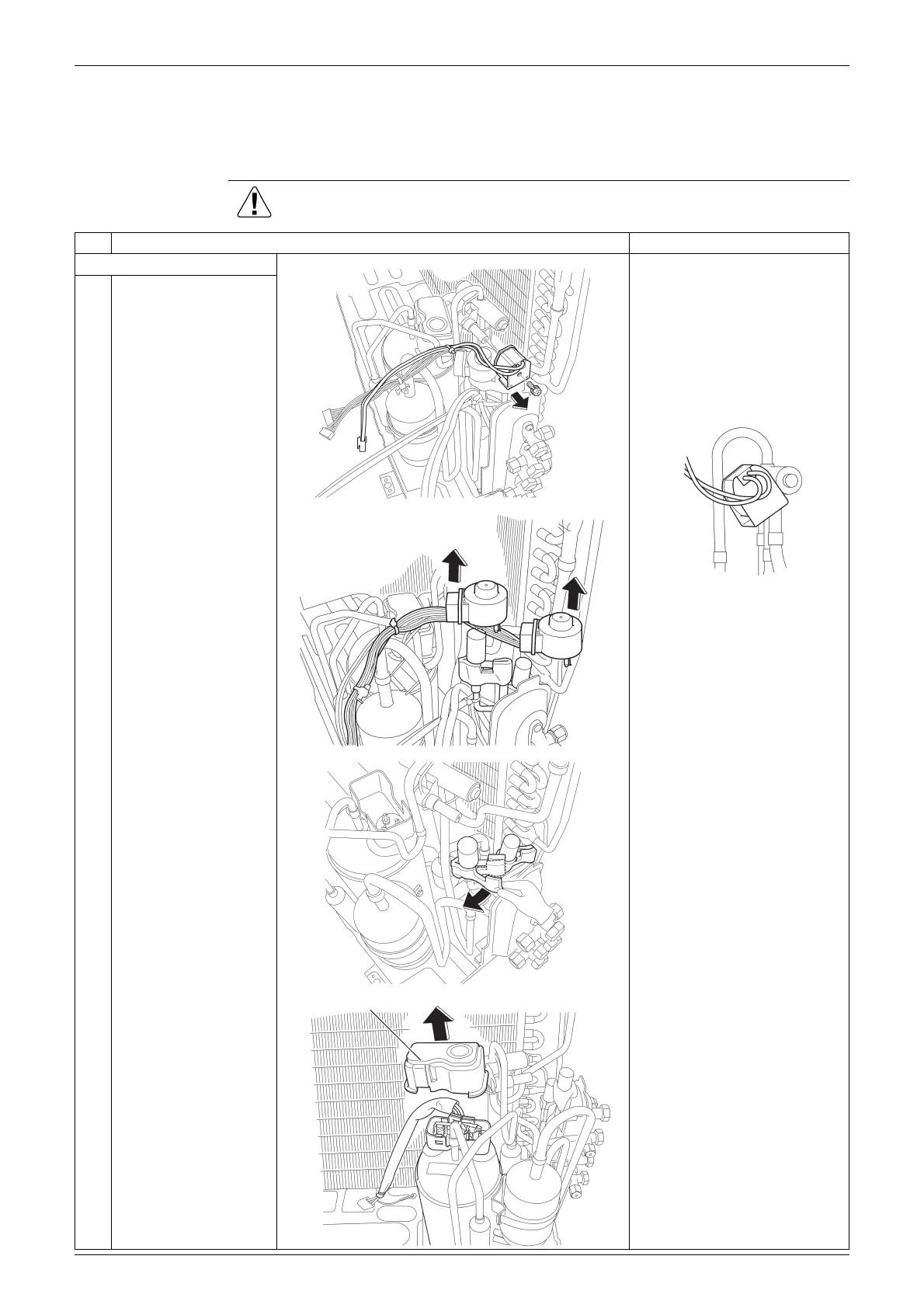

7. Removal of Four Way Valve / Outdoor Electronic
Expansion Valves
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the peripheries.

The cooling only models do
not have a four way valve.
Preparation

Remove the sound blankets
according to the “Removal of
Sound Blankets”.

Detach the four way valve
coil and the clamp, and then
detach the wire harnesses.
1
Remove the screw and
remove the four way
valve coil.
2
Pull out the outdoor
electronic expansion
valve coils.
3
Remove the putty.
4
Remove the terminal
cover.
(R7644)
(R7703)
(R7645)
(R7646)
Terminal cover
(R7637)
