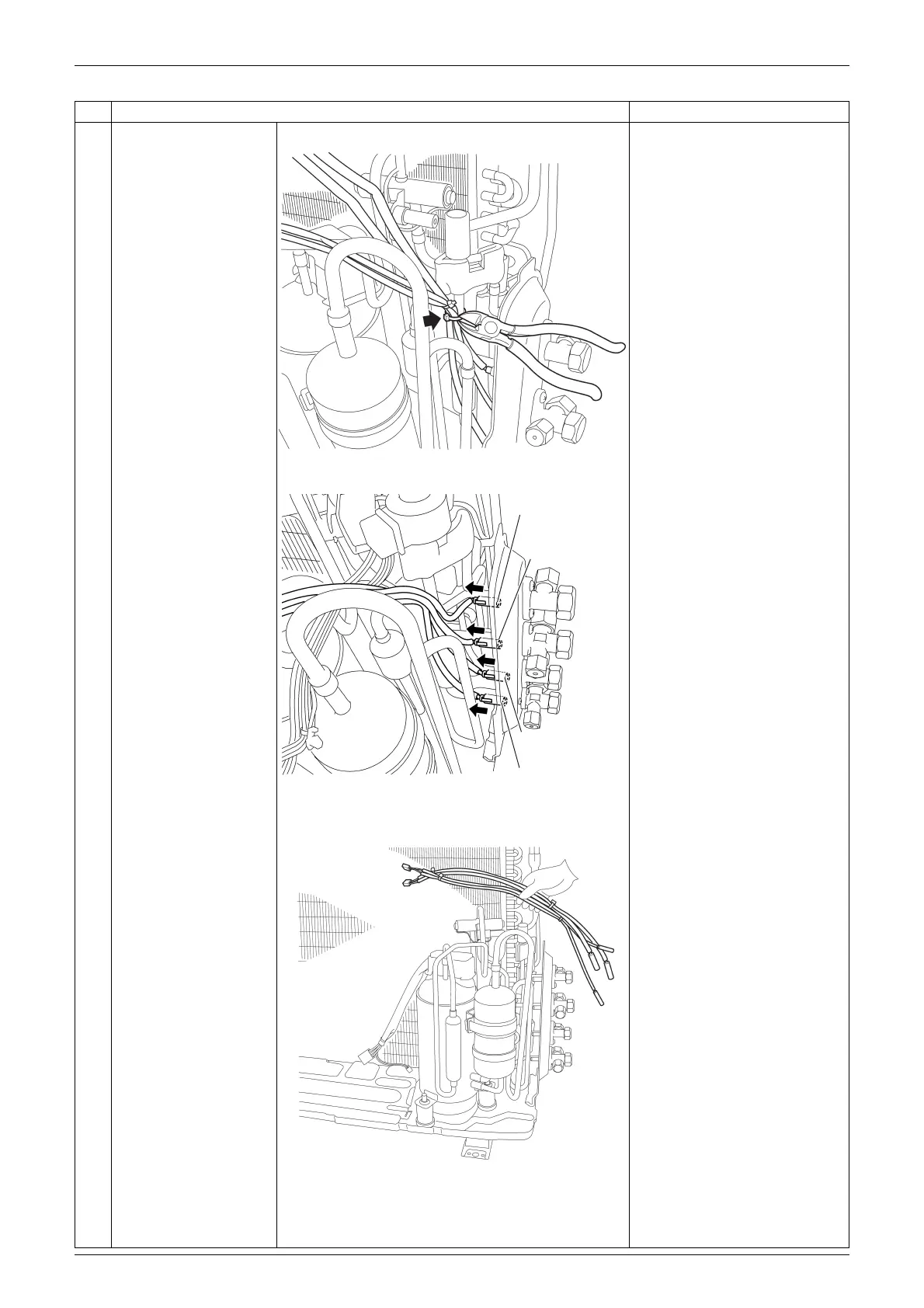

Removal of Thermistors Si12-891
20 Removal Procedure
2
Cut the clamp.
3
Peel the putty and
remove the thermistors. [S91] : gas pipe thermistor
room A (black)
room B (gray)
[S92] : liquid pipe thermistor
room A (black)
room B (gray)
4
The figure shows the
arrangement of the
assembly of the liquid /
gas thermistors.
Step
Procedure Points
(R7634)
(R7635)
Thermistor (Liquid)
Room A
Thermistor (Gas)
Room A
Thermistor (Liquid)
Room B
Thermistor (Gas)
Room B
(R7636)
