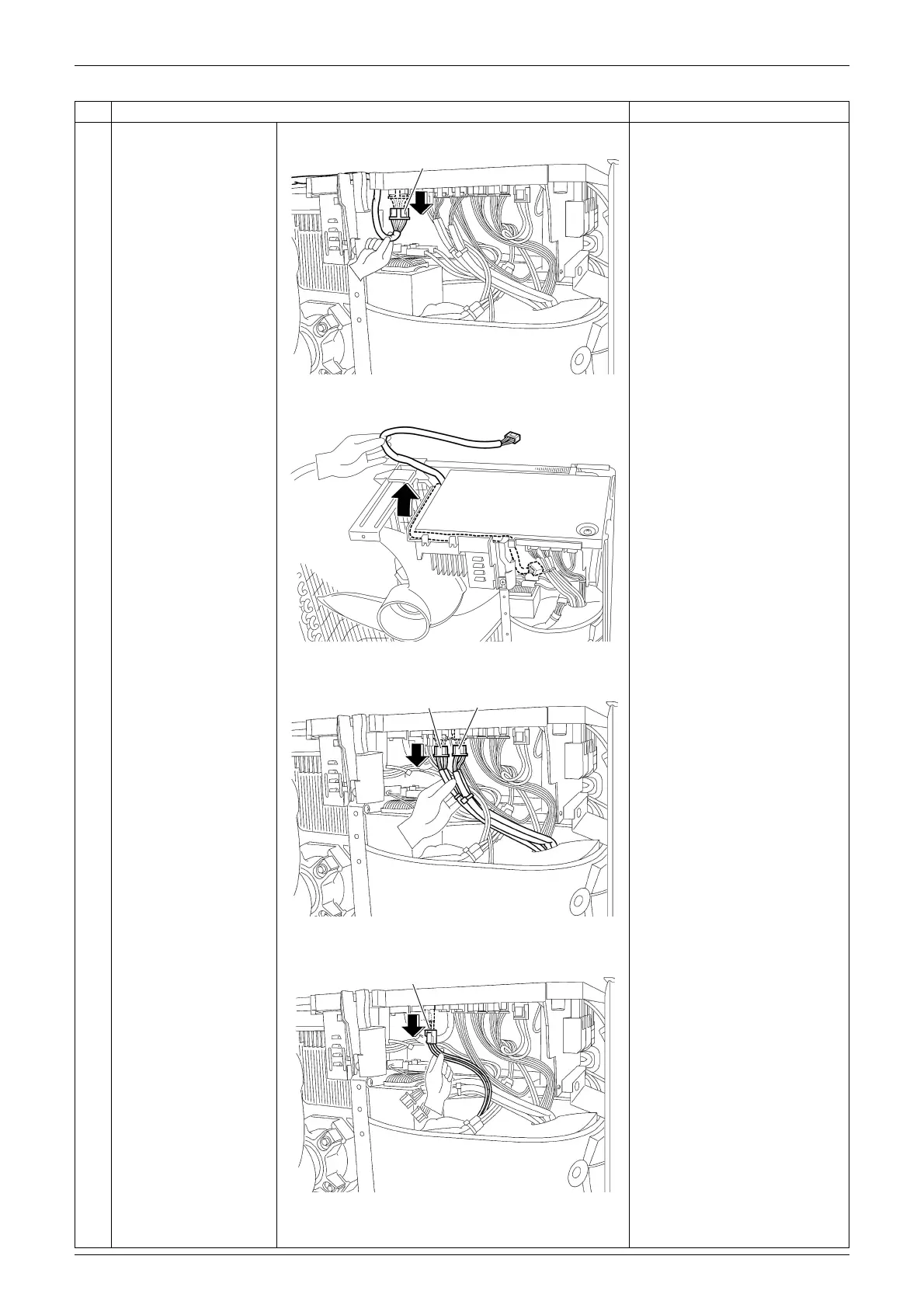

Si12-891 Removal of Electrical Box
Removal Procedure 5
3
Disconnect the
connector for the fan
motor [S70].
4
Release the fan motor
lead wire.
5
Disconnect the
connector for the gas
pipe thermistor [S91]
and for the liquid pipe
thermistor [S92].
[S91]: gas pipe thermistor
(white)
[S92]: liquid pipe thermistor
(red)
6
Disconnect the
connector for the
overload protector
[S40].
[S40]: overload protector
Step
Procedure Points
[S70]
(R12529)
(R7579)
[S92] [S91]
(R12530)
[S40]
(R12531)
