Removal of Electrical Box Si12-891
6 Removal Procedure
7

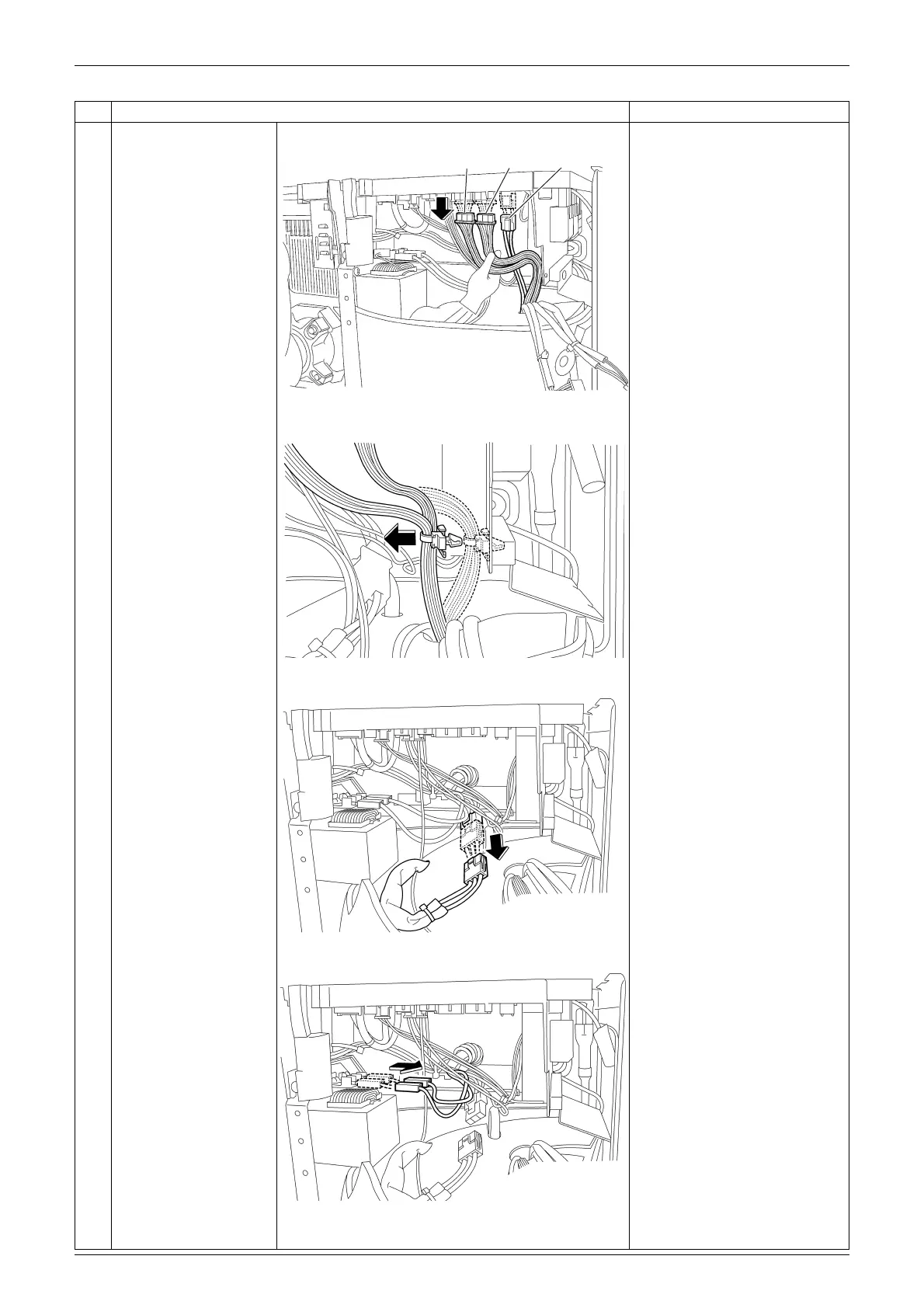

Disconnect the
connectors [S20],
[S21], [S80].

The cooling only models do
not have the harness for
[S80].
[S20]: outdoor electronic
expansion valve coil for
room A (white)
[S21]: outdoor electronic
expansion valve coil for
room B (red)
[S80]: four way valve coil
8
Pull out the clamp from
the electrical box.

The clamp is push-mount
type.
9
Disconnect the relay
connector for the
compressor.
10
Disconnect the 2
connectors for the
reactor.
Step
Procedure Points
[S20] [S21] [S80]
(R12532)
(R7583)
(R12533)
(R12534)
