Si12-891 Removal of Electrical Box
Removal Procedure 7
11

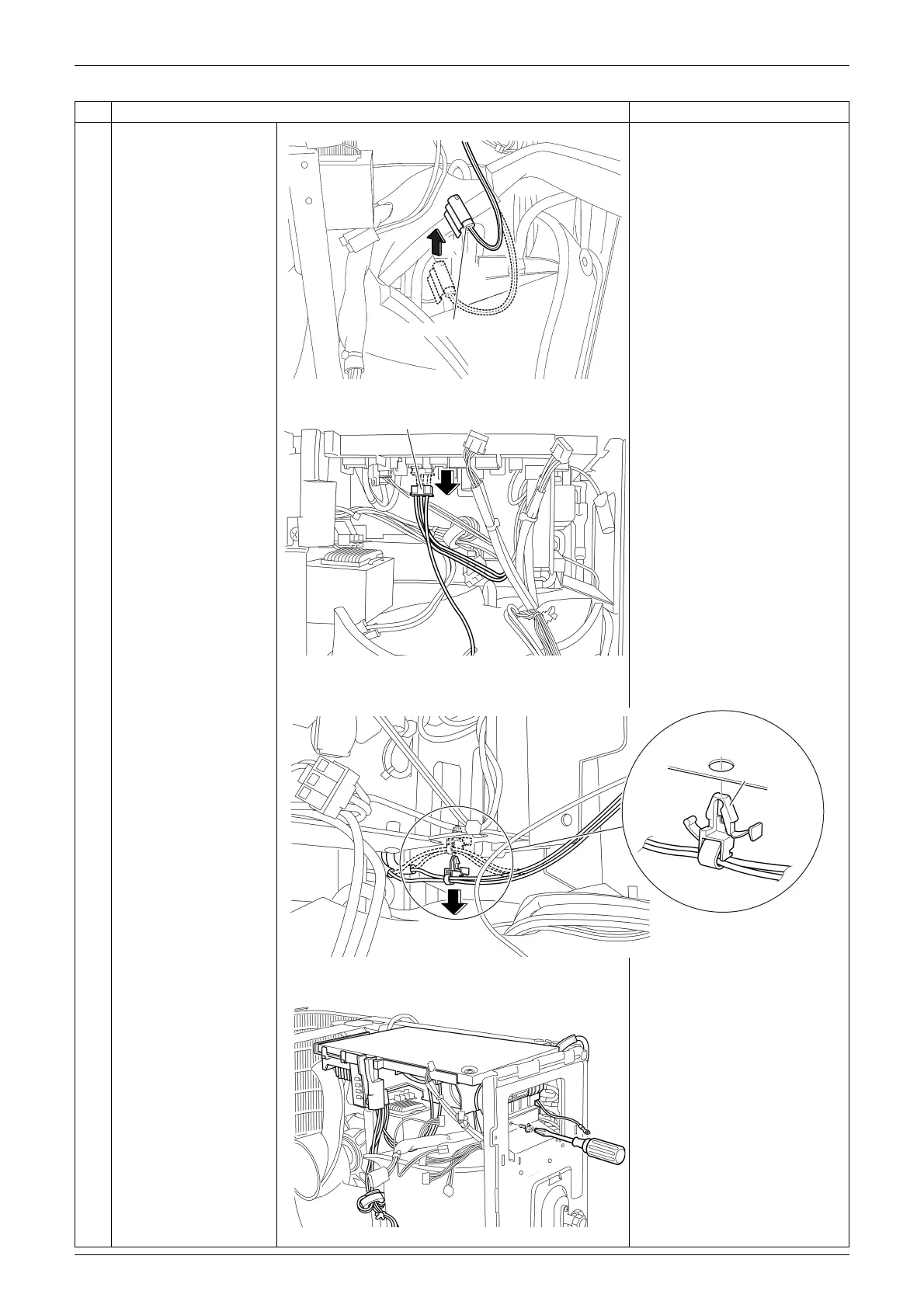

Release the discharge
pipe thermistor.

Meet the edge of the
thermistor and the clip.

Be careful not to lose the clip
for the thermistor.
12
Disconnect the
connector for the
thermistors [S90].
[S90]: thermistors (outdoor
temperature, outdoor
heat exchanger,
discharge pipe)
13
Detach the clamp for
the thermistors from the
electrical box.
14
Remove the screw on
the right side of the
electrical box.
Step
Procedure Points
Discharge pipe thermistor
(R12535)
[S90]
(R7587)
Clamp
(R12771)
(R12536)
