Removal of Outdoor Fan / Fan Motor Si12-891

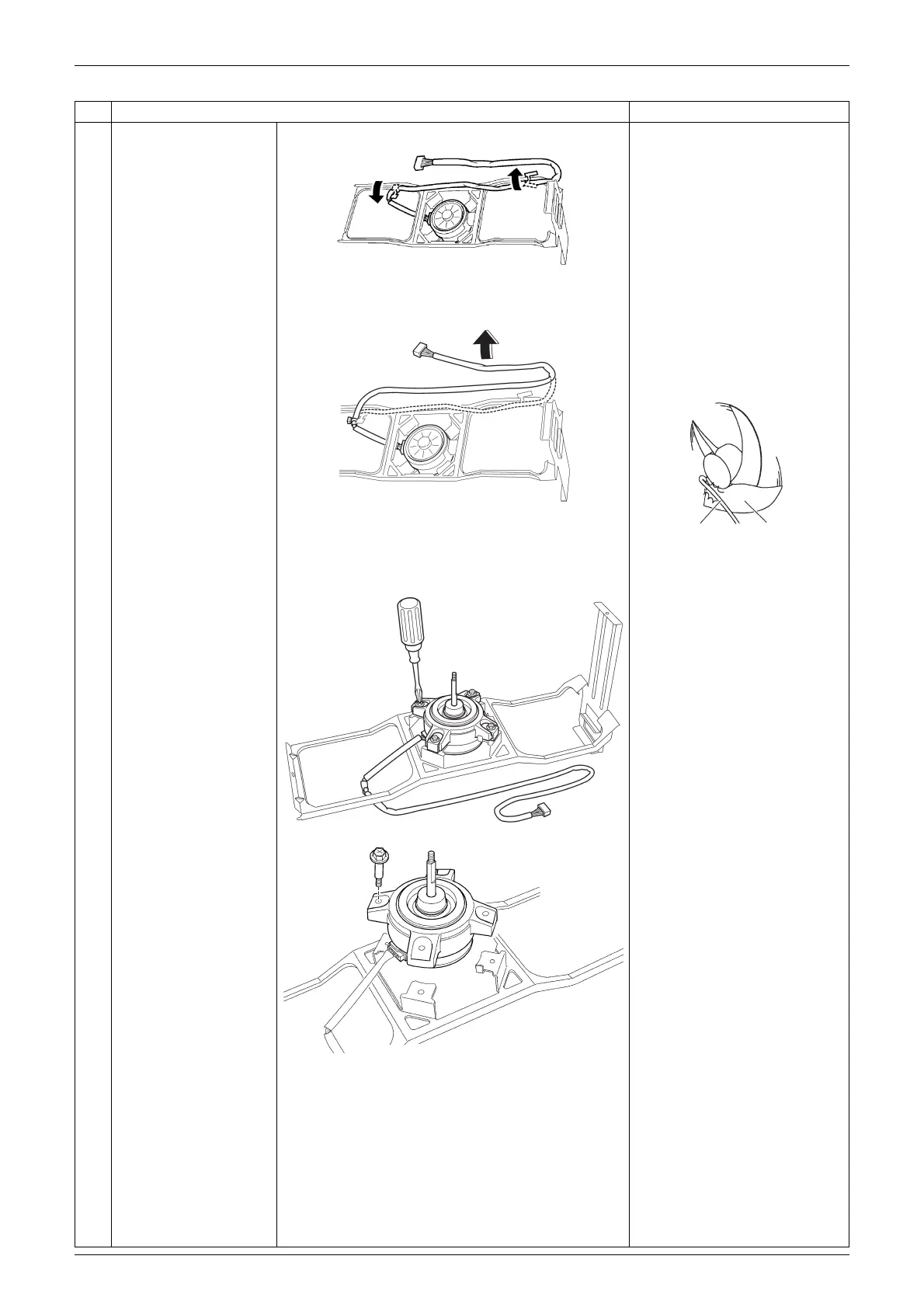

18 Removal Procedure
5
Turn the fan motor
fixing frame backward
and open the 2 hooks of
the fan motor lead wire.
6
Release the fan motor
lead wire.

When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
7
Remove the 4 screws
and remove the fan
motor.
Step
Procedure Points
(R7626)
(R7627)
Lead wire Outdoor fan
(R12215)
(R7628)
(R12773)
