Daikin 3MKD75DVM - Compressor Relay Connector Disconnection; Electrical Box Detachment

Si12-793 Removal of Electrical Box
Removal Procedure 5
4

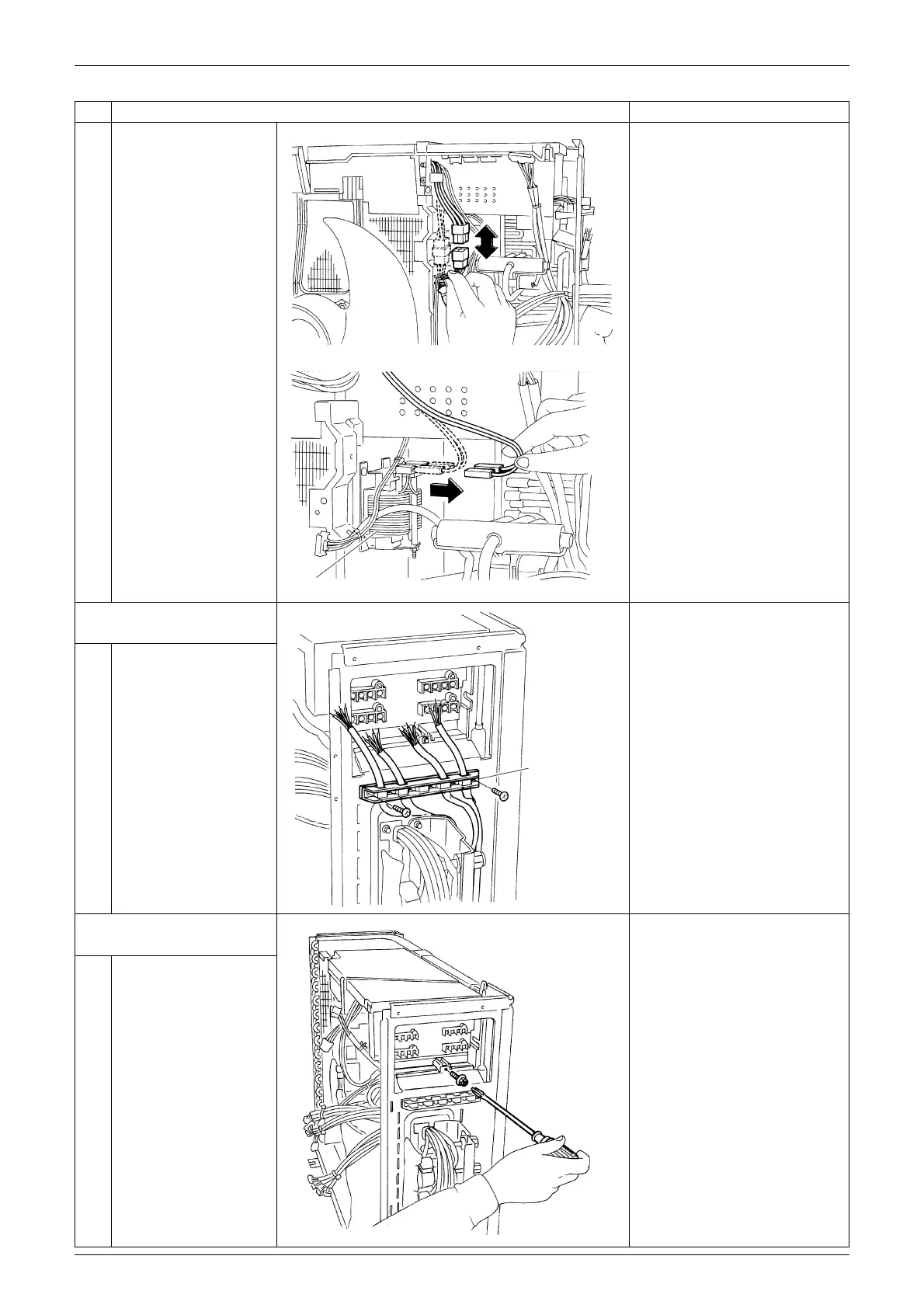

Disconnect the relay
connector of the
compressor.
5
Remove the reactor
lead wires.
3. Remove the wire fixing
plate.
1
Remove the 2 screws
of the wire fixing plate.
4. Remove the electrical
box.
1
Remove the screw of
the electrical box.
Step
Procedure Points
(R2169)
Reactor
(R2170)
(R11309)
Wire fixing
plate
(R2172)
