Daikin 3MKD75DVM - Fan Motor Connector Disconnection; Electrical Box Dismantling

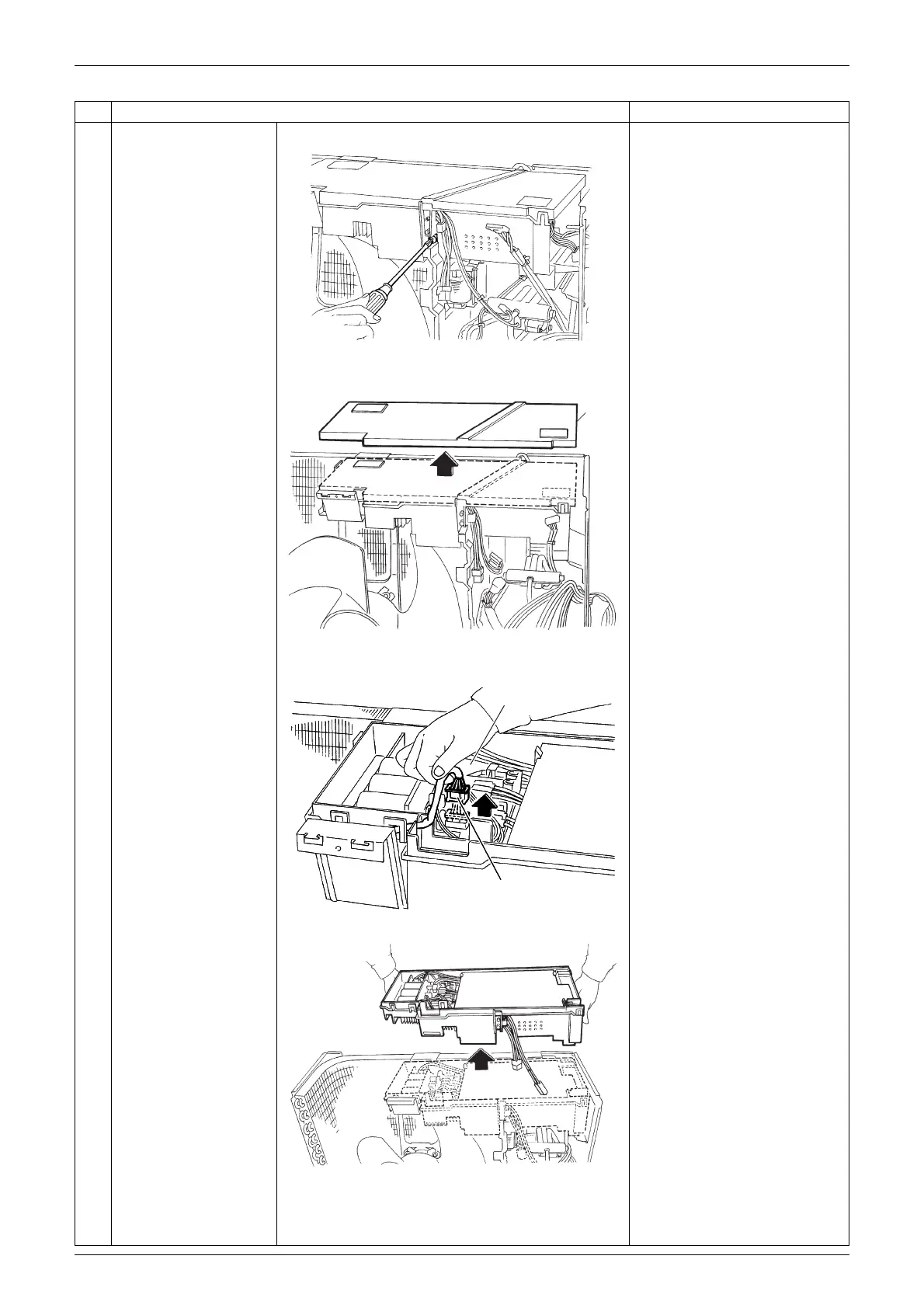

Removal of Electrical Box Si12-793
6 Removal Procedure
2
Remove the screw of
the electrical box.
3
Remove the drip proof
cover.
4
Disconnect the
connector for the fan
motor [S70] from the
inverter PCB.
5
Lift up the electrical box
and dismount it.
Step
Procedure Points
(R2173)
Drip
proof
cover
(R2174)
Inverter PCB
[S70]
(R2175)
(R2176)
