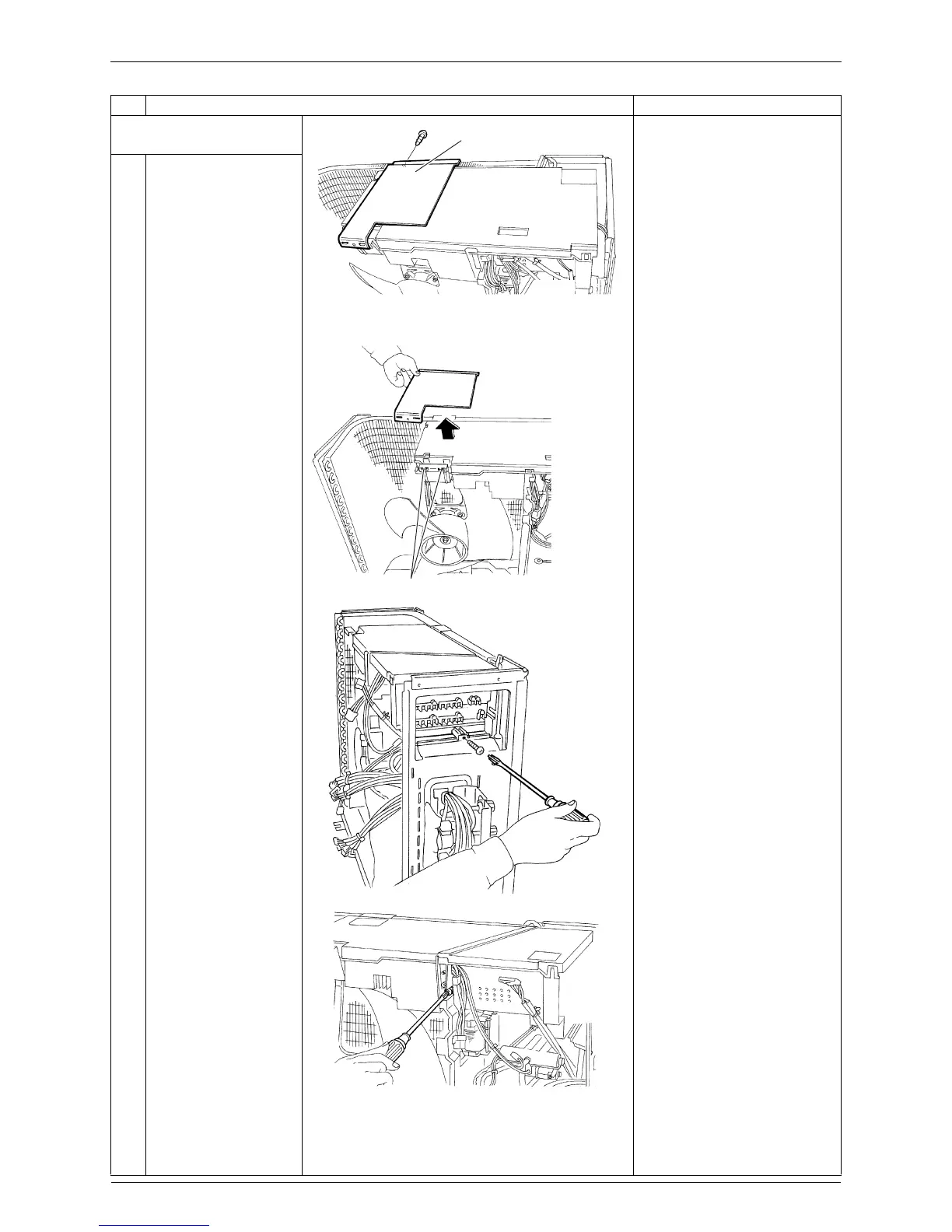

Removal of Electrical Box (Pattern 2) Si121175
10 Removal Procedure
3. Remove the electrical
box.
1
Remove the screw of
the shield plate.
2
Unfasten the 2 hooks
and remove the shield
plate.
3
Remove the screw on
the right side of the
electrical box.
4
Remove the screw on
the front side of the
electrical box.
Step
Procedure Points
(R17345)
Shield plate
(R17346)
Hook
(R10361)
(R17402)
