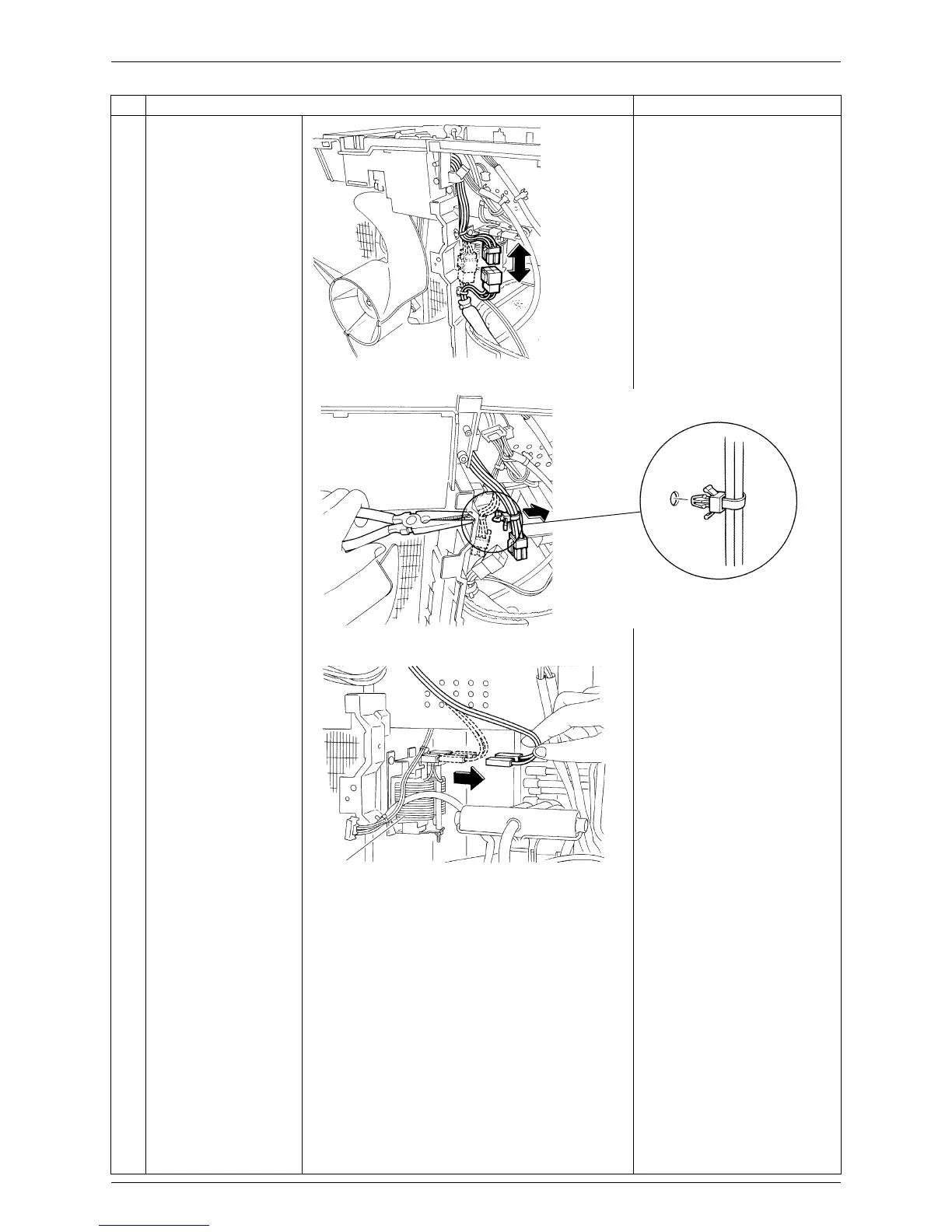

Si121175 Removal of Electrical Box (Pattern 2)
Removal Procedure 9
4
Disconnect the relay
connector of the
compressor.
5
Release the clamp with
pliers.
6
Disconnect the reactor
lead wires.
Step
Procedure Points
(R17065)
(R17066)
(R2170)
Reactor
