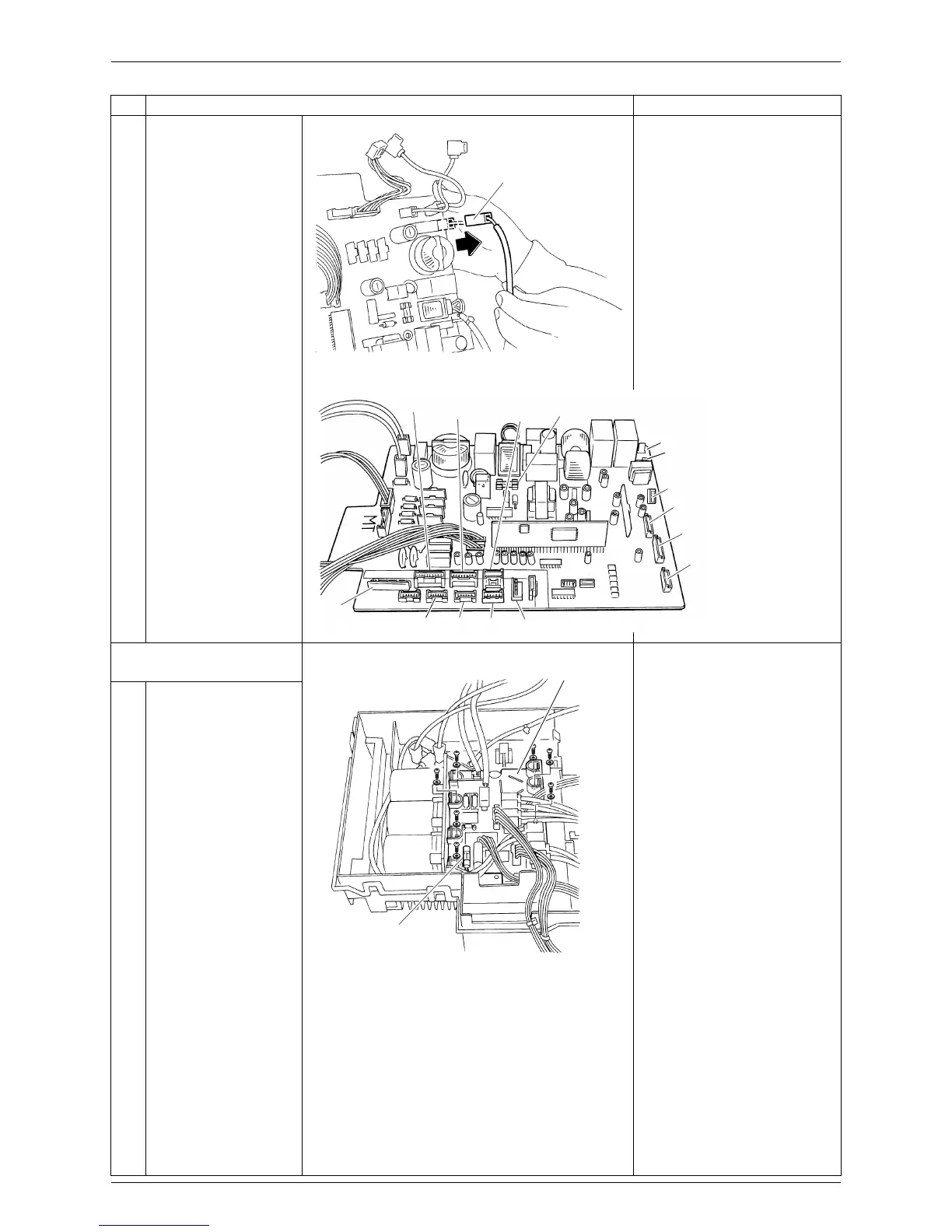

Si121175 Removal of PCBs (Pattern 1)
Removal Procedure 15
12
Disconnect the
connector [E].
13
The figure shows the
main PCB.
2. Remove the inverter PCB
(MID2).
1
Remove the 7 screws
to remove the inverter
PCB (MID2).
Step
Procedure Points
[E] (green/yellow)
(R2184)
[H1]
[H2]
[S22]
[S80]
[S21] [S20]
[S40]
(R11310)
[S31]
[S33]
[S32]
[S90]
[S92]
[S93]
FU2
[S71]
Fuse (3.15A)
Inverter
PCB
(R10355)
