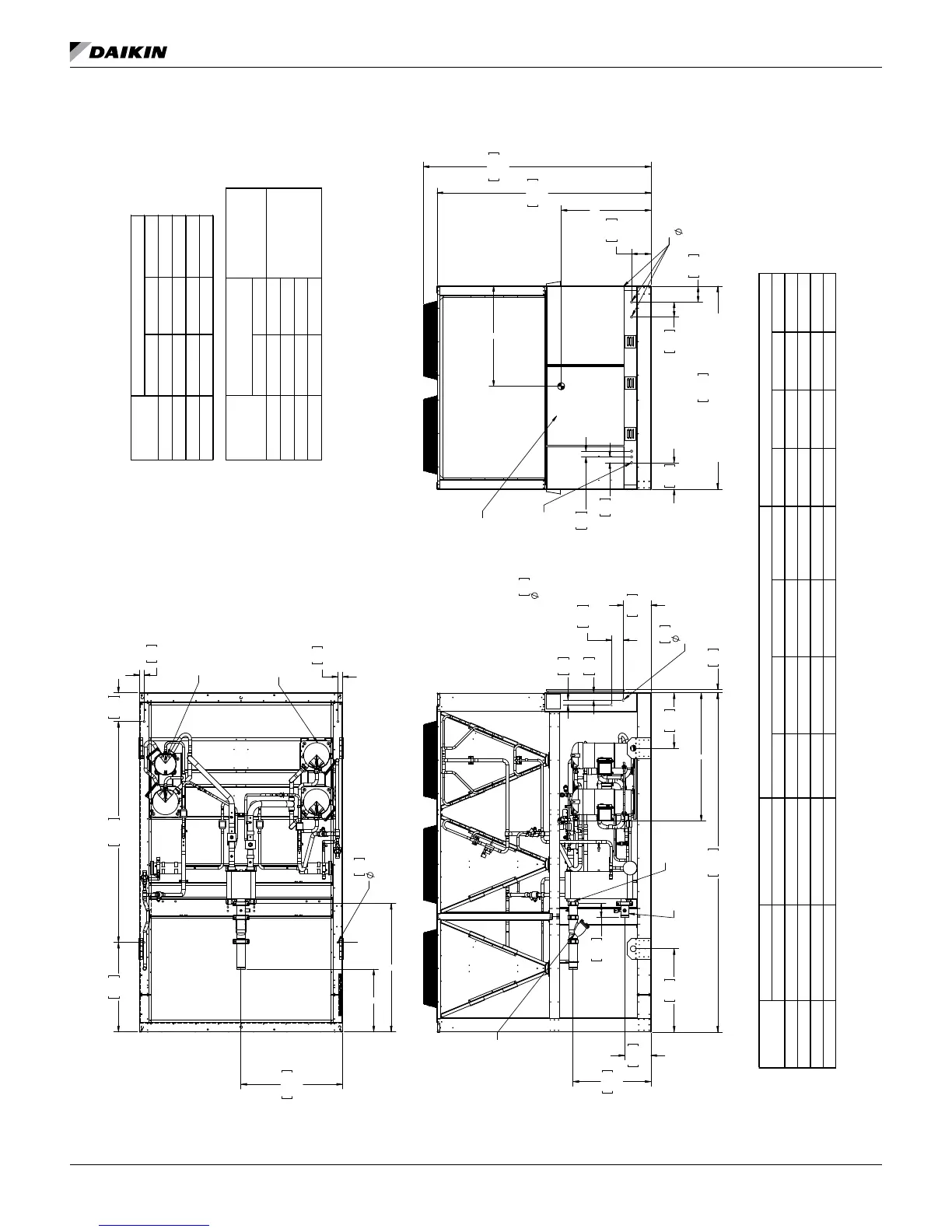

dImensIons and WeIghTs - paCkaged UnITs
Figure 33: AGZ075E - AGZ100E
POWER ENTRY KNOCKOUTS OF THE CONTROL BOX ARE ON THE OPPOSITE SIDE
22
.875 KNOCKOUTS
Z
X
Y
L3 L4 L2
WATER INLET EVAP.
(FACTORY OR FIELD INSTALLED OPTION)
OUTLET EVAP. WATER
L1
WYE-STRAINER REQUIRED
2.0
51
3.1
80
609
24.0
37
1.5
12.0
916
36.1
153
6.0
3733
147.0
11.4
290
127
5.0
305
858
33.8
LOCATIONS
LIFTING
L1 - L4,
NOTE: LIFTING WEIGHTS ARE BASED ON UNIT SHIPPING WEIGHTS.
MOUNTING WEIGHTS ARE BASED ON UNIT OPERATING WEIGHT WITH EVAPORATOR WATER INCLUDED. SHIPPING AND OPERATING WEIGHTS DO NOT INCLUDE THE WEIGHTS OF ANY OPTIONS OR ACCESSORIES.
00
334547111
AGZ-E, 6 FANS
BOX
CONTROL
[22]
.875 POWER ENTRY
KNOCKOUTS FRONT OR RIGHT SIDE
6.5
98.6
2506
292
64
11.5
2.5
64
2.5
165
88.0
2235
DIMENSION DOES NOT INCLUDE
LIFTING BRACKETS
6.9
175
213
8.4
2355
92.7
22
.875 KNOCKOUTS
FIELD CONTROL
CONNECTIONS
QTY. 3
L2
M1
COMPR.
CIRCUIT 2
M1 - M4, ISOLATOR MOUNTING HOLE LOCATIONS ON BOTTOM SURFACE OF UNIT BASE.
M3
M2
L4
M4
L1
L3
CIRCUIT 1
COMPR.
TOP VIEW WITH COILS AND FANS REMOVED
44.0
2.0
A
19
.750
QTY. 4
52
2433
12.4
315
38.7
984
52
2.0
95.8
1118
B
AB
AGZ075E
55.6 (1412) 27.1 (688)
AGZ080E
54.4 (1382) 25.9 (658)
AGZ090E
54.4 (1382) 25.9 (658)
AGZ100E
51.6 (1311) 23.1 (587)
CONNECTION
SIZE, IN.
3.0 (76)
EVAP. DIMENSIONS
IN (MM)
UNIT
MODEL
XYZ
AGZ075E
45.3 (1151) 38.6 (980) 56.2 (1427)
AGZ080E
44.2 (1122) 39.2 (995) 56.5 (1435)
AGZ090E
44.2 (1122) 39.2 (995) 55.0 (1397)
AGZ100E
43.6 (1108) 38.9 (988) 55.7 (1415)
UNIT
MODEL
CG LOCATION, IN (MM)
SHIPPING WEIGHT OPERATING WEIGHT
LBS (KG) LBS (KG) L1 L2 L3 L4 M1 M2 M3 M4
AGZ075E
4388 (1990)
4451 (2019) 1341 (608) 1420 (644) 790 (358) 837 (380) 1173 (532) 1242 (563) 989 (449) 1047 (475)
AGZ080E
4510 (2046)
4579 (2077) 1407 (638) 1418 (643) 840 (381) 846 (384) 1232 (559) 1241 (563) 1049 (476) 1057 (479)
AGZ090E
4540 (2059)
4609 (2091) 1456 (660) 1466 (665) 806 (366) 812 (368) 1276 (579) 1285 (583) 1020 (463) 1028 (466)
AGZ100E
4696 (2130)
4780 (2168) 1505 (683) 1480 (671) 863 (391) 848 (385) 1322 (600) 1299 (589) 1089 (494) 1070 (485)
UNIT MODEL
LIFTING (SHIPPING) WEIGHT BY CORNER, LBS (KG) MOUNTING (OPERATING) WEIGHT, LBS (KG)
