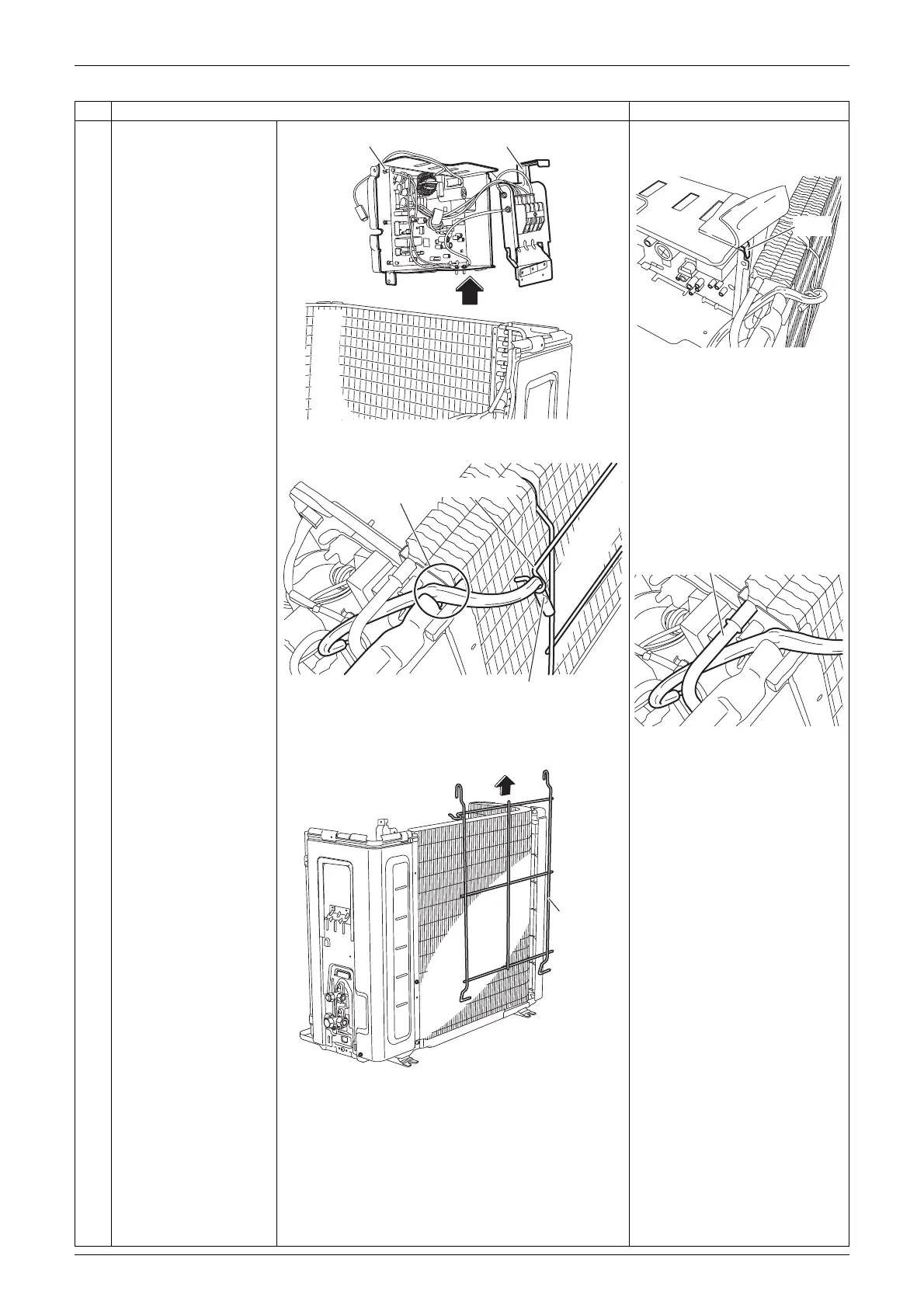

Si001560EB Electrical Box
Removal Procedure 9
11 Lift up and remove the
electrical box together
with the terminal board
mounting plate.
When reassembling, make
sure to fit the rear hook.
12 Remove the outdoor
temperature thermistor
from the protection net
and from the slit.
When reassembling, make
sure to pass the outdoor
temperature thermistor
under the top part of the heat
exchanger first.
13 Lift up and remove the
protection net.
Step Procedure Points
Electrical box Terminal board mounting plate
(R22399)
Hook
(R22400)
Slit
Protection net
Outdoor temperature
thermistor
(R23996)
Top part of the heat exchanger
(R22402)
Protection
net
(R21314)
To Next Page
