Outer Panels Si001560EB
2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

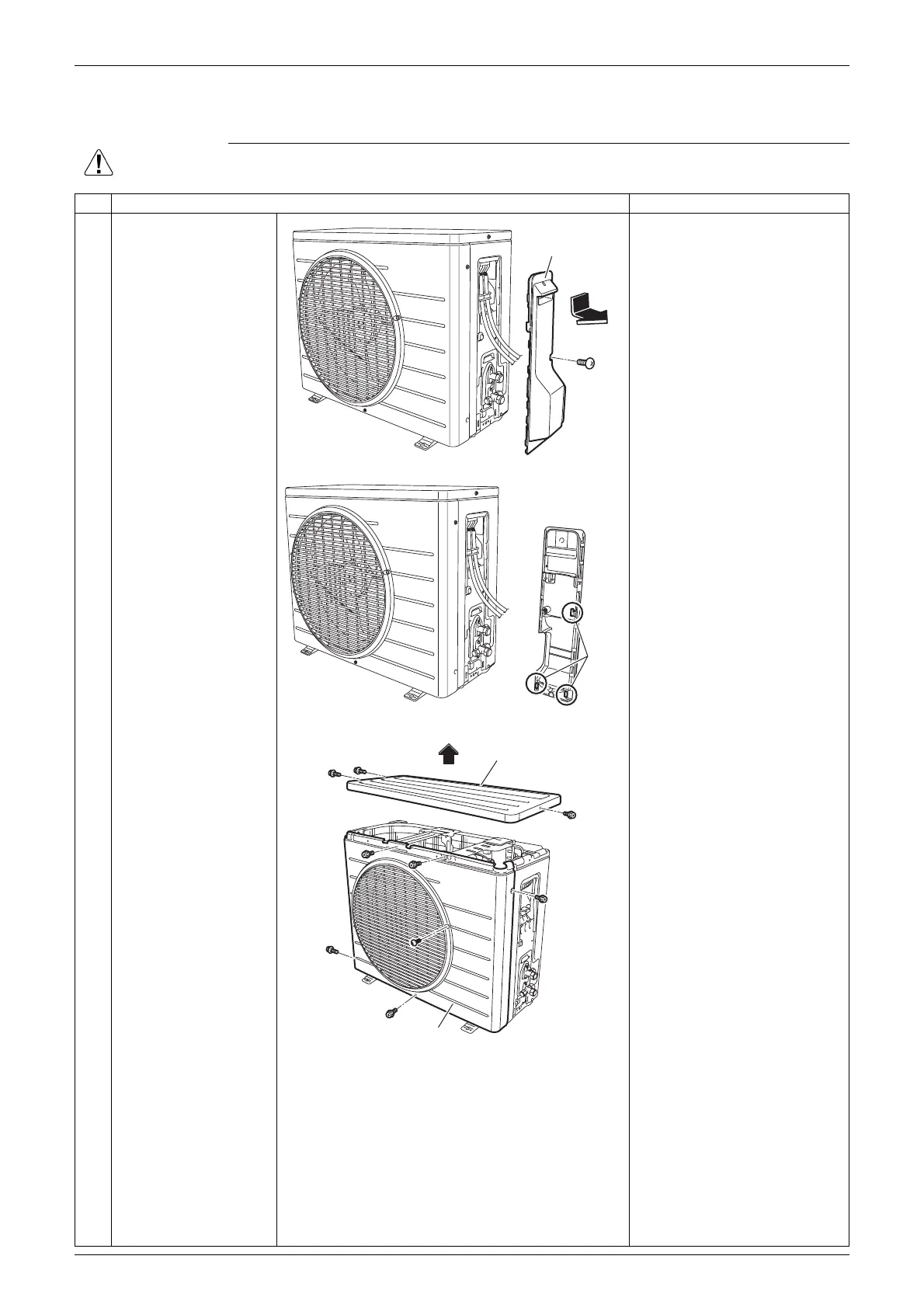

1
2
Remove the screw of
the stop valve cover.
Pull down and remove
the stop valve cover.

When reassembling, make
sure to fit the 3 hooks.
3
4
Remove the 3 screws,
and then the top panel.
Remove the 6 screws
of the front panel.
Stop valve
cover
(R21285)
Hook
(R23311)
Front panel
Top panel
(R22381)
