Si001560EB Reactor / Partition Plate
Removal Procedure 13
6. Reactor / Partition Plate
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

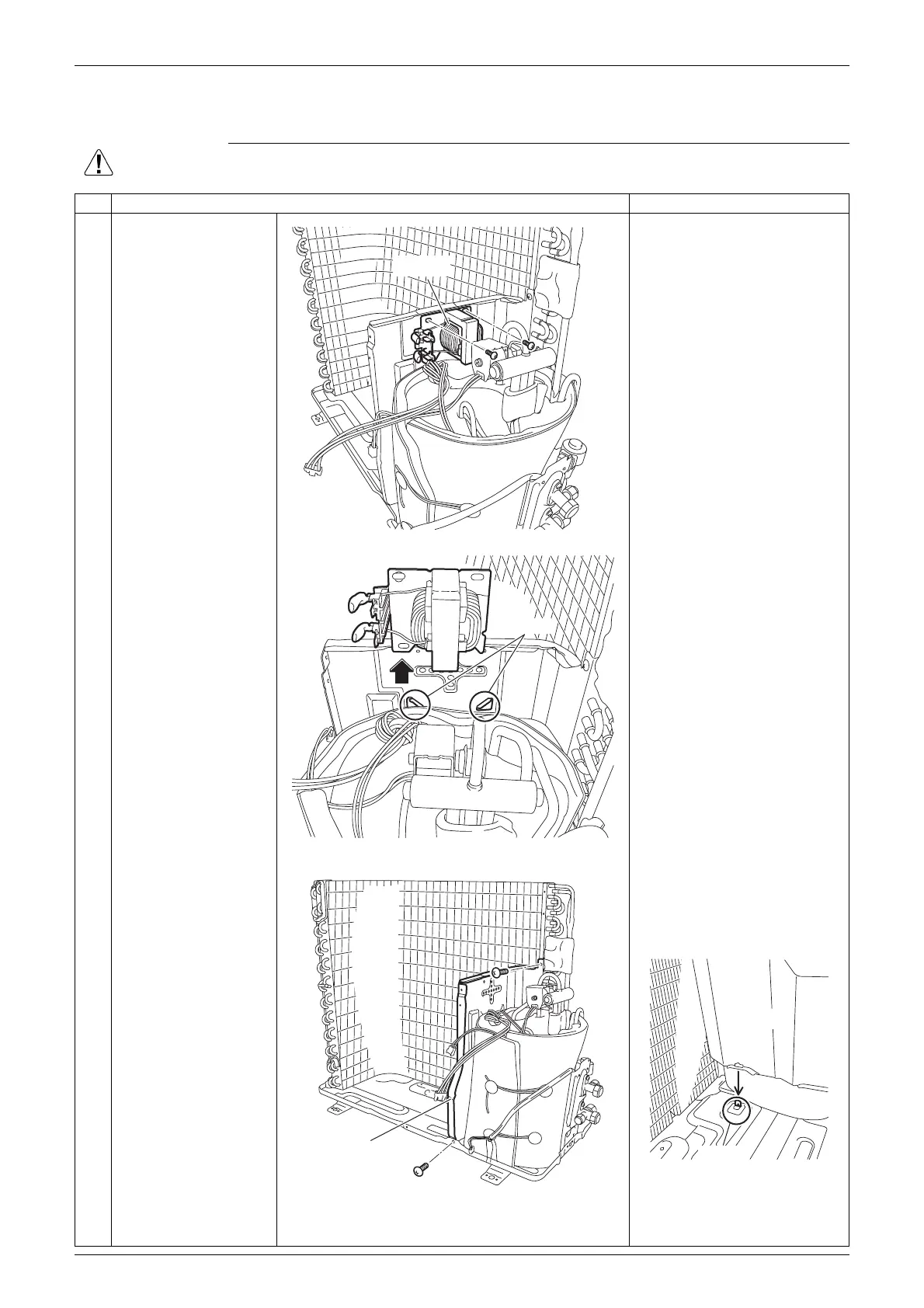

Step Procedure Points
1 Remove the 2 screws
of the reactor.
2
3
Slide the reactor
upward to unfasten the
2 hooks.
Remove the reactor.
4 Remove the 2 screws,
and then the partition
plate.

When reassembling, fit the
hole on the partition plate to
the hook on the bottom
frame.
Reactor
(R22411)
Hook
(R22412)
Partition plate
(R22413)
Hook
(R22414)
