Daikin ARKC12RV2S User Manual

Electrical Box Si001560EB
6 Removal Procedure

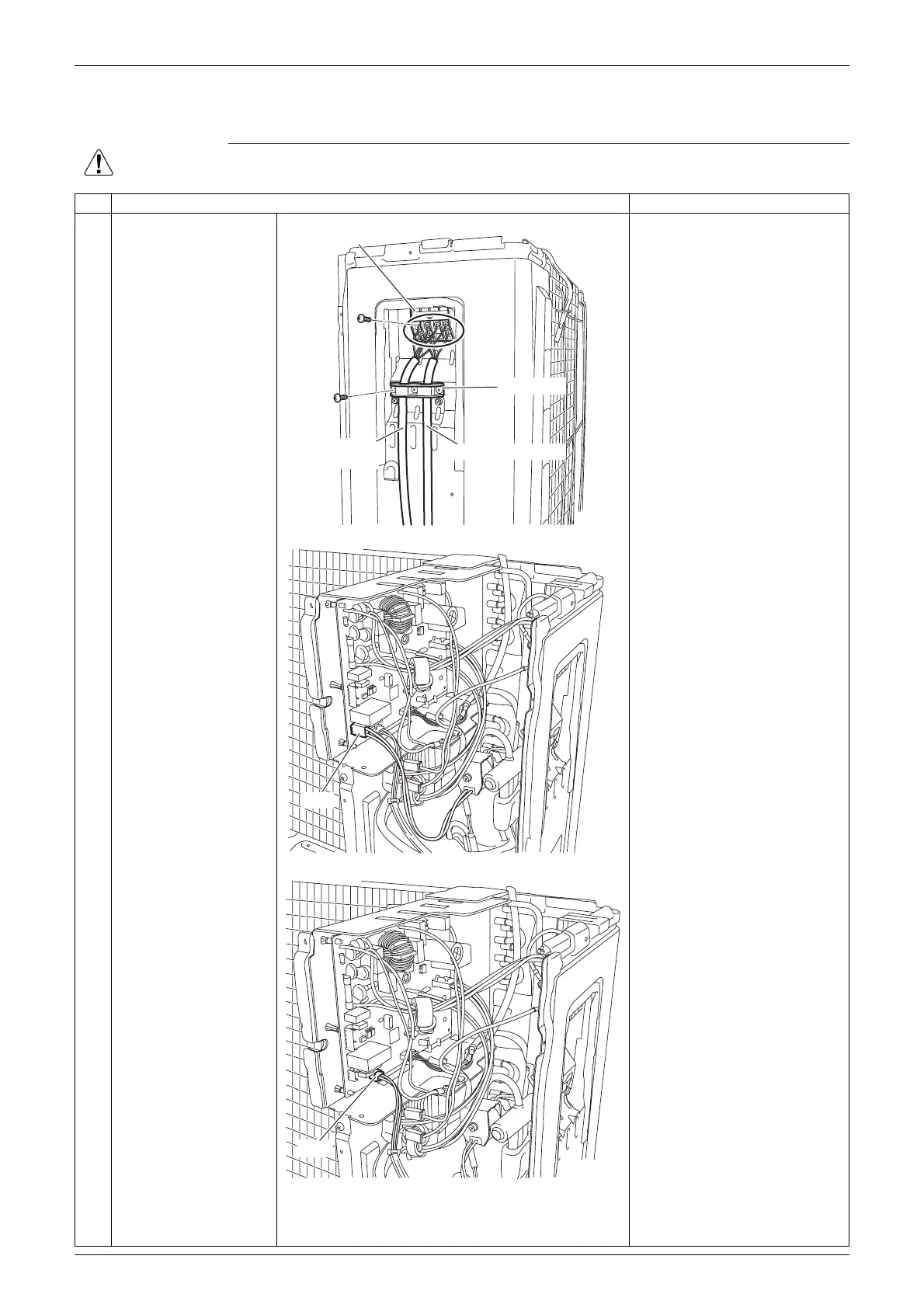

3. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and
power supply wire.
Remove the 3 screws,
and then the wire
fixture.
3 Disconnect the
connector [S80].
[S80]: four way valve coil

The cooling only models
have no harness for [S80].
4 Disconnect the
connector [S20].
[S20]: electronic expansion
valve coil
Wire fixture
Power supply wire
Terminal board
Connecting
wire
(R22390)
[S80]
(R22391)
[S20]
(R22392)
