Si001560EB PCB
Removal Procedure 11

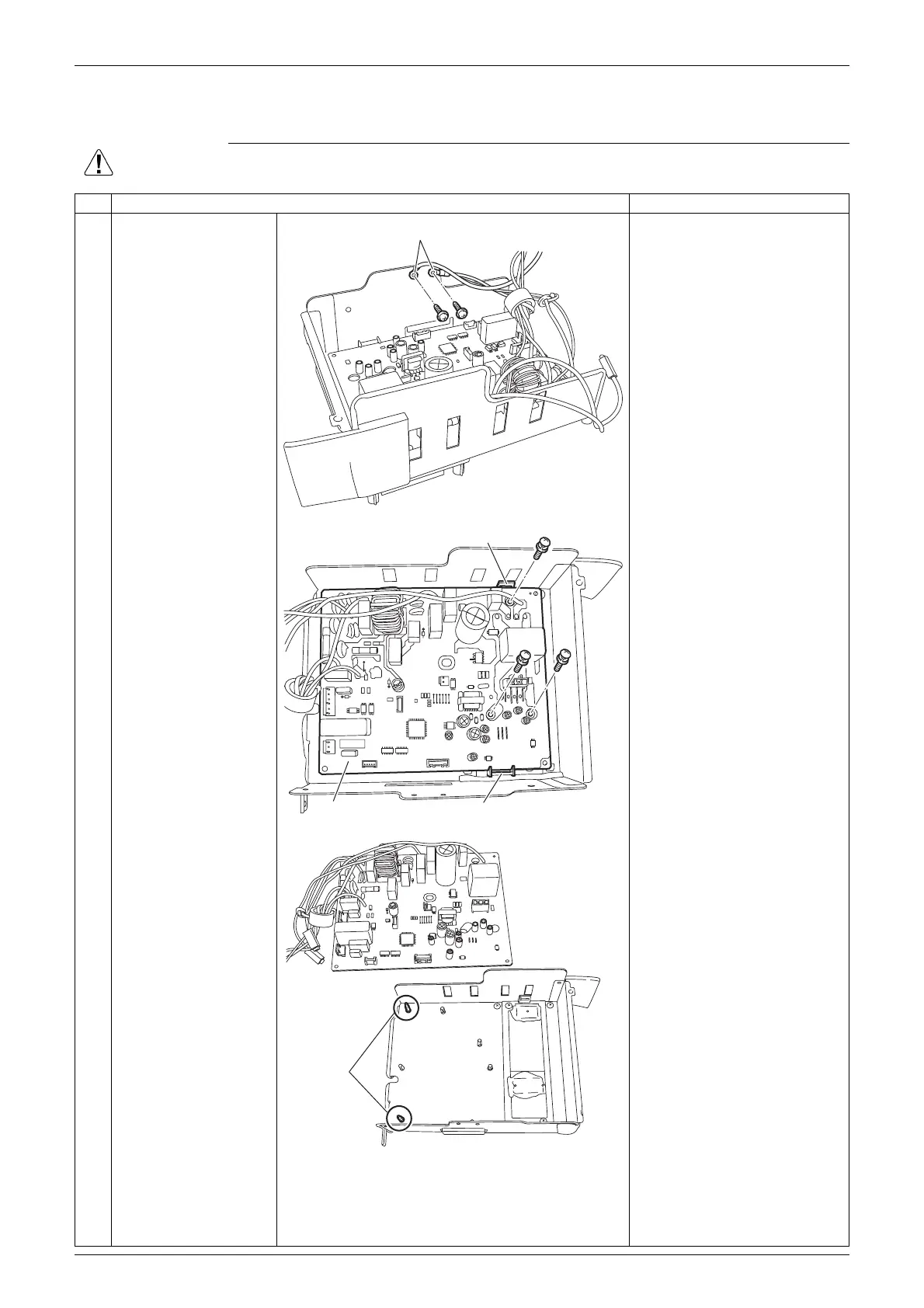

4. PCB
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 2 earth/
ground screws.

Some models do not have a
ferrite core on the earth/
ground harness.
2
3
Remove the 3 screws
of the PCB.
Unfasten the 2 hooks
and remove the PCB.

When reassembling, make
sure to fit the 2 projections to
the PCB.
Earth/ground screw
(R23997)
Hook
PCB
Hook
(R22406)
Projection
(R22407)
