Partition Plate / Sound Blankets Si001413EB

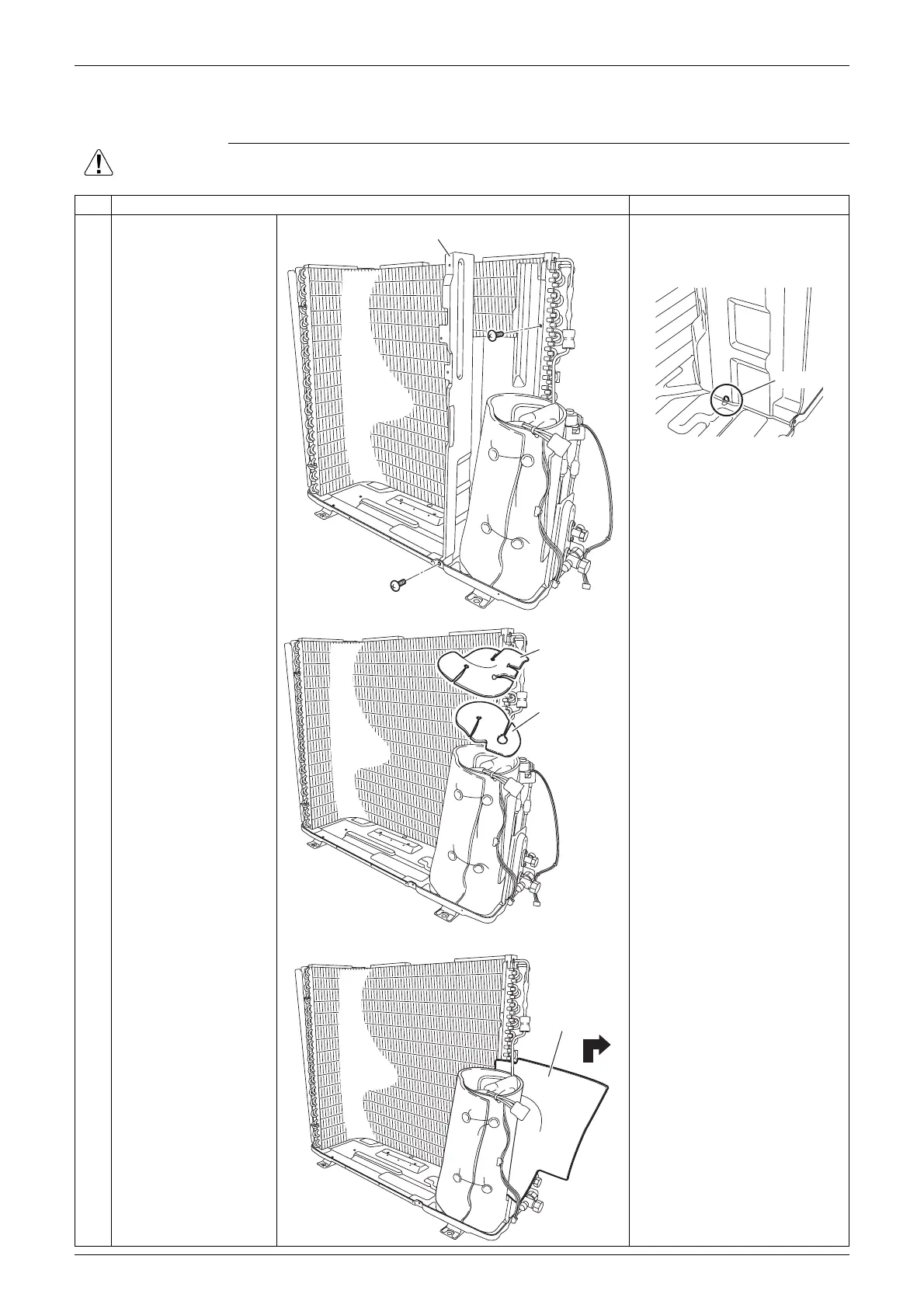

12 Removal Procedure
5. Partition Plate / Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 2 screws
and remove the
partition plate.

When reassembling, fit the
lower hook into the bottom
frame.
2 Remove the sound
blanket (top upper) and
sound blanket (top
lower).

Since the piping ports are
torn easily, remove the
sound blankets carefully.
3 Remove the sound
blanket (back).
Partition plate
(R20548)
Hook
(R20677)
Sound blanket
(top lower)
Sound blanket
(top upper)
(R20549)
Sound blanket
(back)
(R20550)
