Daikin ARKC18RV2S User Manual

Electrical Box Si001413EB
6 Removal Procedure
3. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 2 screws
and remove the side
shield plate.
2
3
Remove the 3 screws
and remove the wire
fixture.
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and
power supply wire.
4 Remove the earth /
ground screw on the
right side panel.

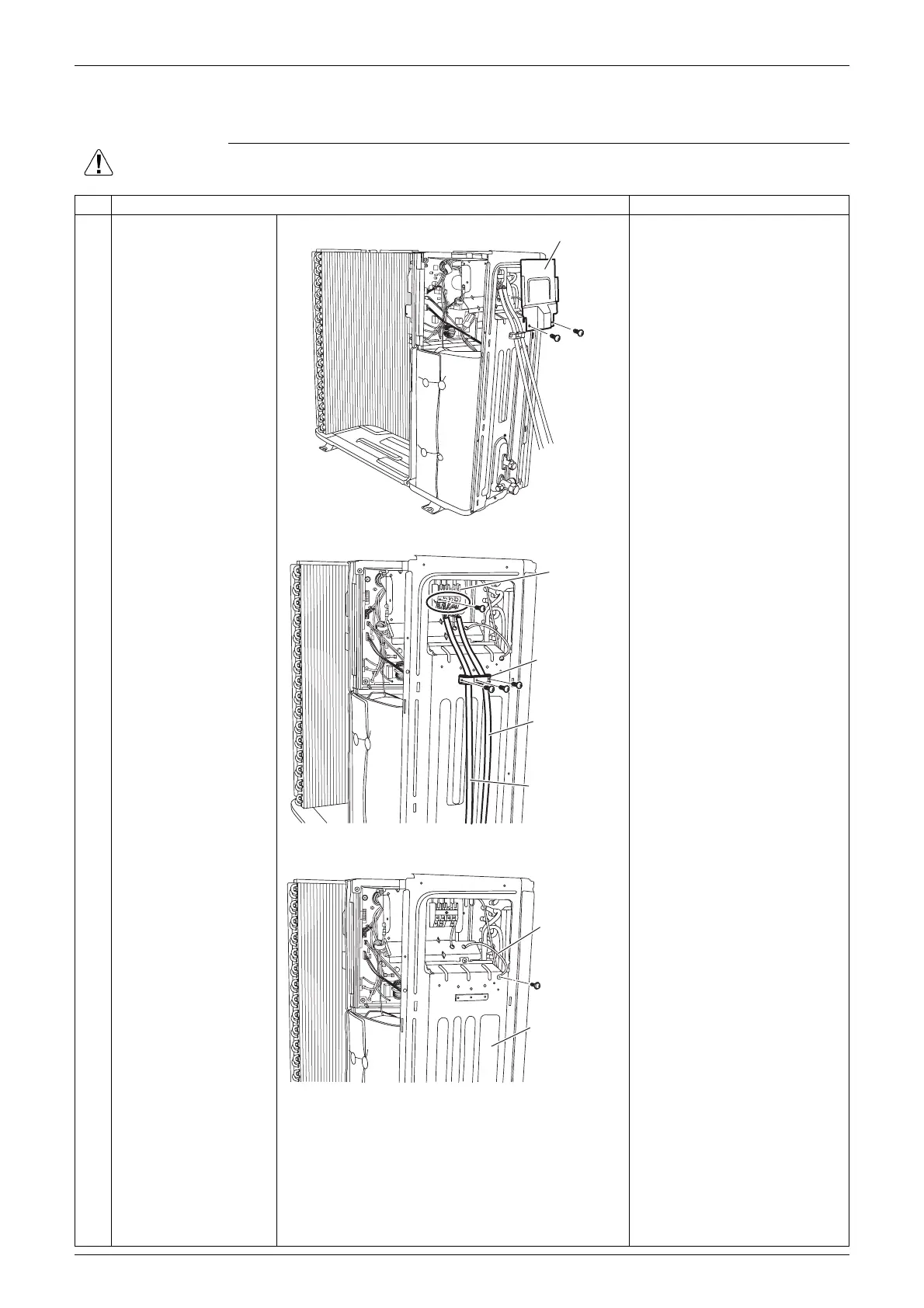

Side shield plate
(R23352)
Wire fixture
Connecting wire
Power supply
wire
(R20318)
Terminal
board
Earth / ground
wire
Right side panel
(R20670)
