Si001413EB Outdoor Fan / Fan Motor

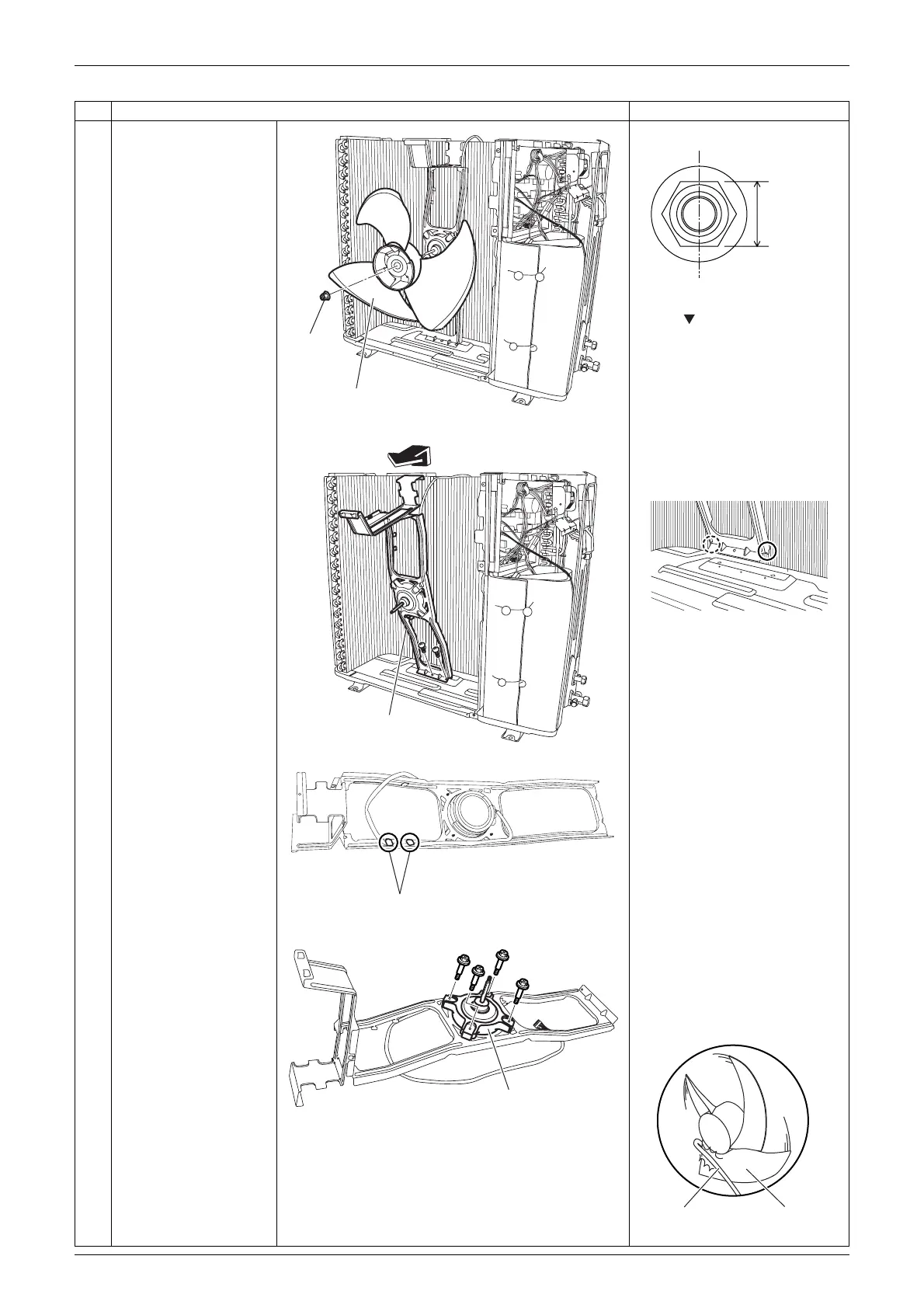

Removal Procedure 5
4 Remove the nut and
remove the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
5
6
7
Remove the 2 screws
of the fan motor fixing
frame.
Pull up the fan motor
fixing frame to unfasten
the 2 hooks at the
bottom.
Remove the fan motor
fixing frame.

When reassembling, fit the 2
lower hooks into the bottom
frame.
8 Unfasten the 2 hooks
and release the fan
motor lead wire.
9 Remove the 4 screws
and remove the fan
motor.

When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
Step Procedure Points
Nut
Outdoor fan
(R20312)
10 mm
(0.39 inch)
(R18954)
(R20668)
Fan motor
fixing frame
(R20314)
Hook
(R22019)
Fan motor
(R20316)
(R3249)
Lead wire Outdoor fan
