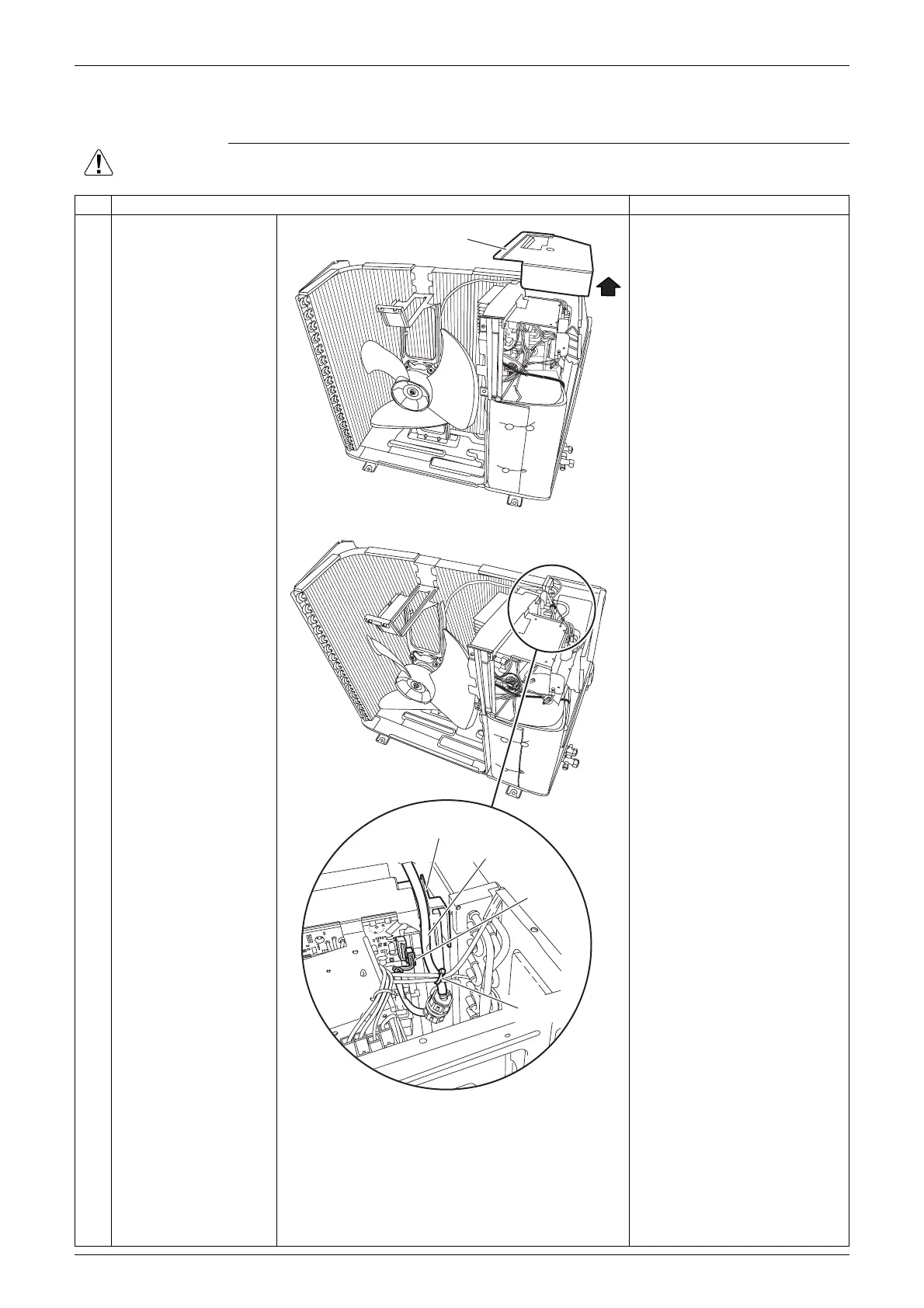

Outdoor Fan / Fan Motor Si001413EB
4 Removal Procedure
2. Outdoor Fan / Fan Motor
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the top shield
plate.
2
3
Cut the clamp.
Disconnect the
connector [S70] and
release the fan motor
lead wire from the
groove.
[S70]: fan motor
Top shield plate
(R23351)
(R20540)
Clamp
[S70]
Groove
Fan motor
lead wire
