Si001413EB Electronic Expansion Valve
Removal Procedure 15
2
3
4
Pull out the compressor
lead wires.
Pull out the overload
protector.
Remove the protection
bushing.

This is the view from the
back side.
5 Pull out the electronic
expansion valve coil.
6
7
Remove the putty.
Heat up the 2 brazed
parts and remove the
electronic expansion
valve.

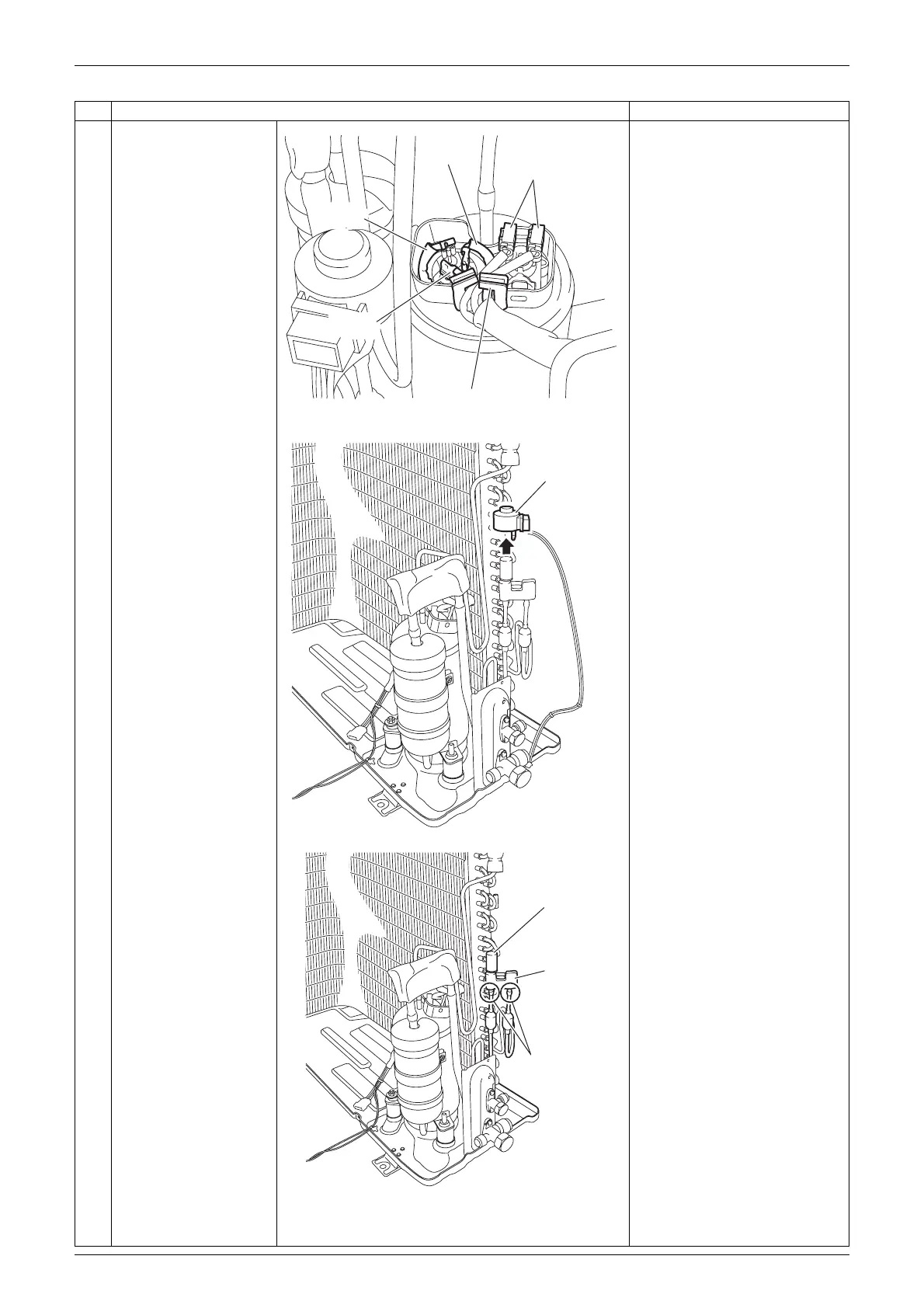

Step Procedure Points
U (red)
Overload protector
V (yellow)
W (blue)
Protection bushing
(R23353)
Electronic
expansion
valve coil
(R20555)
Putty
Electronic
expansion
valve
Brazed part
(R20556)
