Daikin ARKC18RV2S User Manual

Si001413EB Compressor
Removal Procedure 17
2
3
4

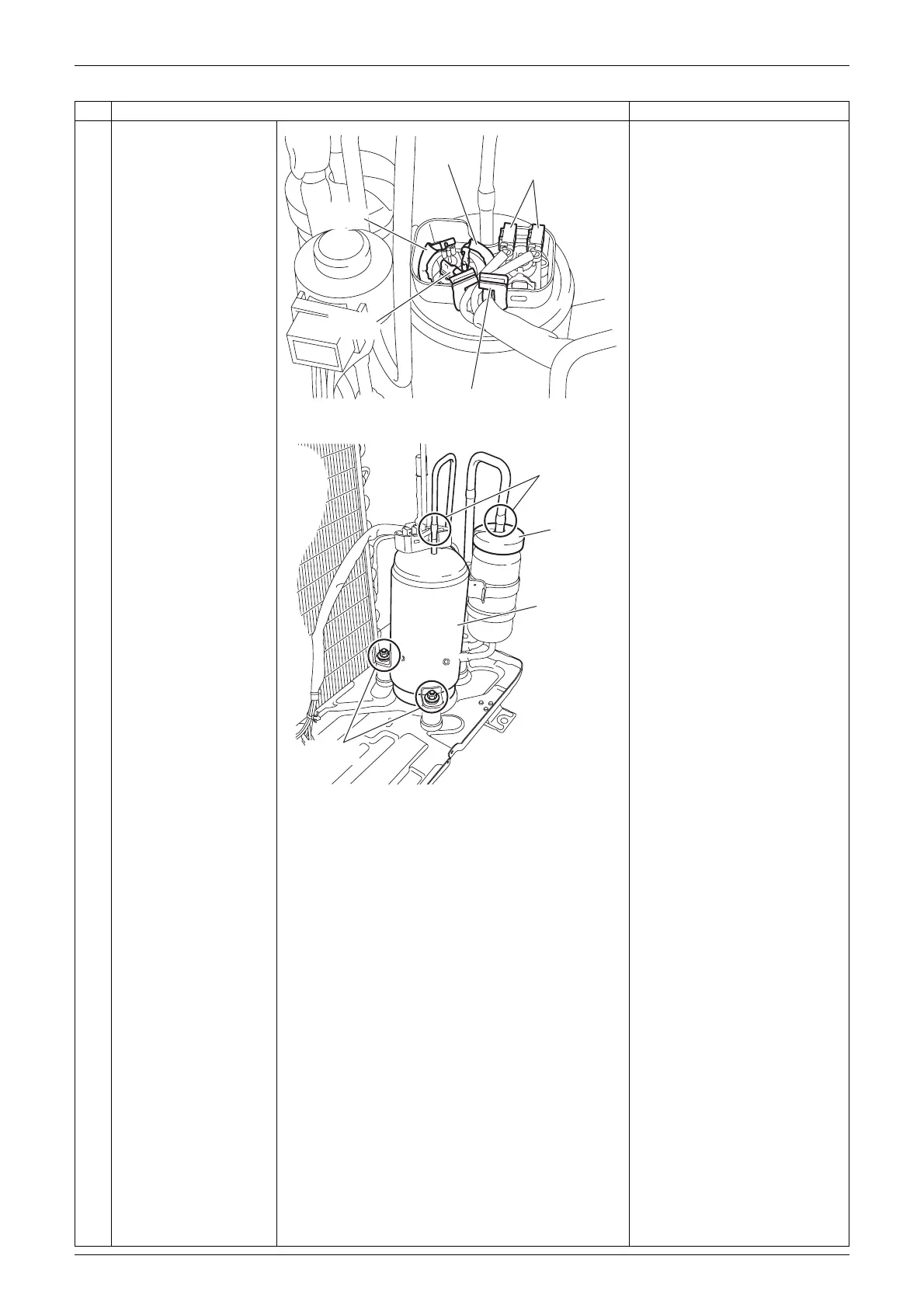

Pull out the compressor
lead wires.
Pull out the overload
protector.
Remove the protection
bushing.

This is the view from the
back side.
5
6
7
8
9
Remove the putty.
Heat up the brazed part
of the discharge side
and disconnect it.
Heat up the brazed part
of the suction side and
disconnect it.
Remove the 2 nuts.
Lift up the compressor
and remove it.
Step Procedure Points
U (red)
Overload protector
V (yellow)
W (blue)
Protection bushing
(R23353)
Nut
Brazed part
Putty
Compressor
(R23399)
