SiBE04-809 Outdoor Unit
Removal Procedure 165

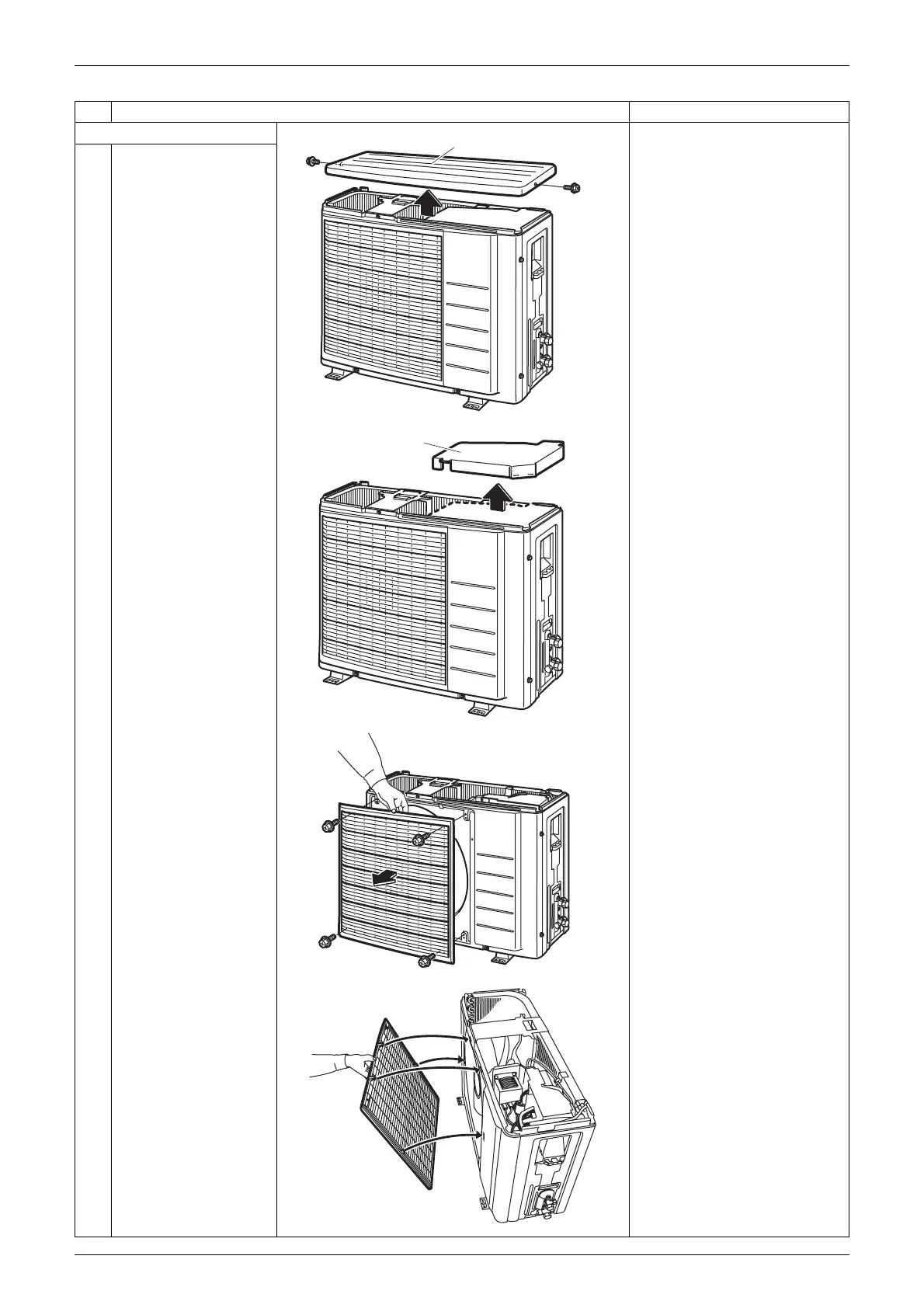

2. Remove the panels.
1
Loosen the 2 screws
(right, left) and lift the
top panel.
2
Remove the drip proof
plate.
3
Loosen the 4 screws of
the discharge grille.
The discharge grille has 4
hooks.
Step
Procedure Points
DAIKIN
INVERTER
Top panel
(R7190)
DAIKIN
INVERTER
(R7191)
Drip proof plate
DAIKIN
INVERTER
(R7192)
(R7193)
