Daikin ARXG35E3V1B User Manual

SiBE04-809 Outdoor Unit
Removal Procedure 177

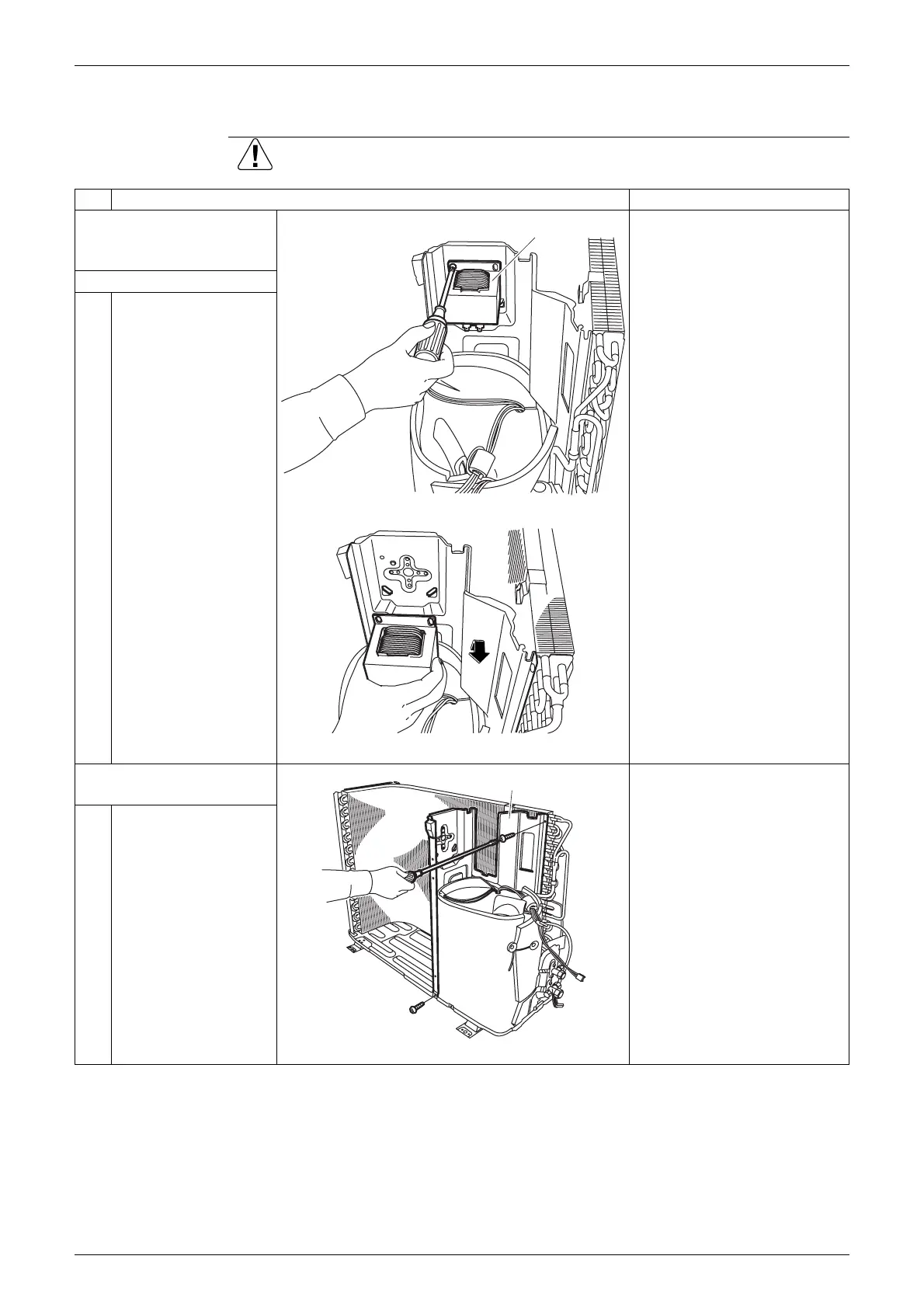

2.3 Removal of Reactor and Partition Plate
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

Remove the outer panels.

Remove the electrical
box.
1. Remove the reactor.
1
Loosen the screw.
Lift and remove the
reactor.
2. Remove the partition
plate.
1
Loosen the 2 screws.
(R7224)
Reactor
(R7225)
(R7226)
Partition plate
