Daikin ARXG35E3V1B User Manual

Outdoor Unit SiBE04-809
168 Removal Procedure
4

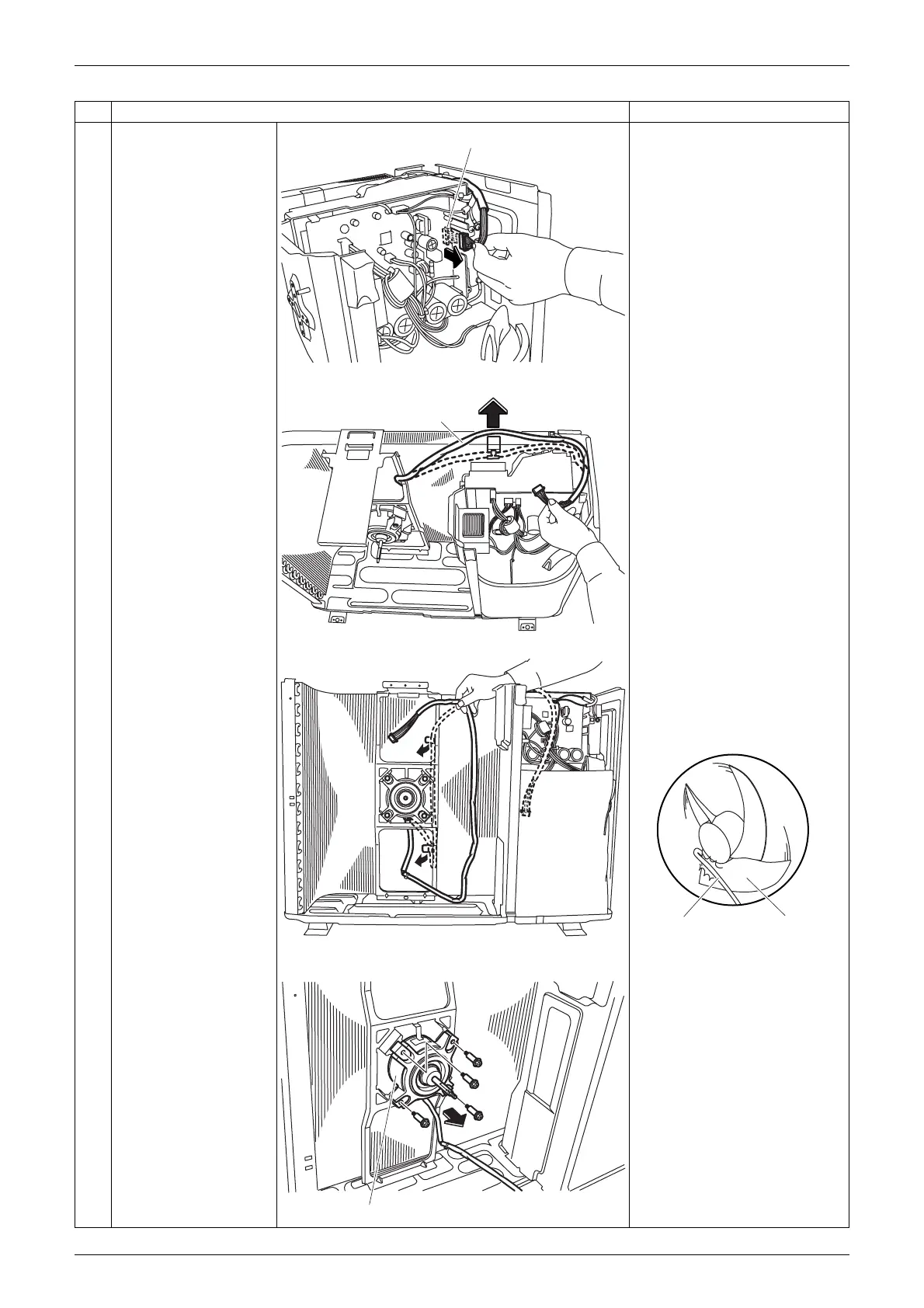

Disconnect the fan
motor connector [S70].
5
The illustration shows
arrangement of the fan
motor lead wire.
6
Loosen the fixing hooks
and release the lead
wire.

Put the lead wire through the
back of the motor when
reassembling. (so as not to
be entangled with the
propeller fan)
7
Loosen the 4 screws to
remove the fan motor.

DC fan motor
Step
Procedure Points
S70
(R7199)
Fan motor
lead wire
(R7200)
(R7201)
(R3249)
Lead wire Propeller fan
Fan motor
(R7202)
