1. Outdoor Unit (100 Class)
1.1 Removal of Outer Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Removing the suction
grille.
1

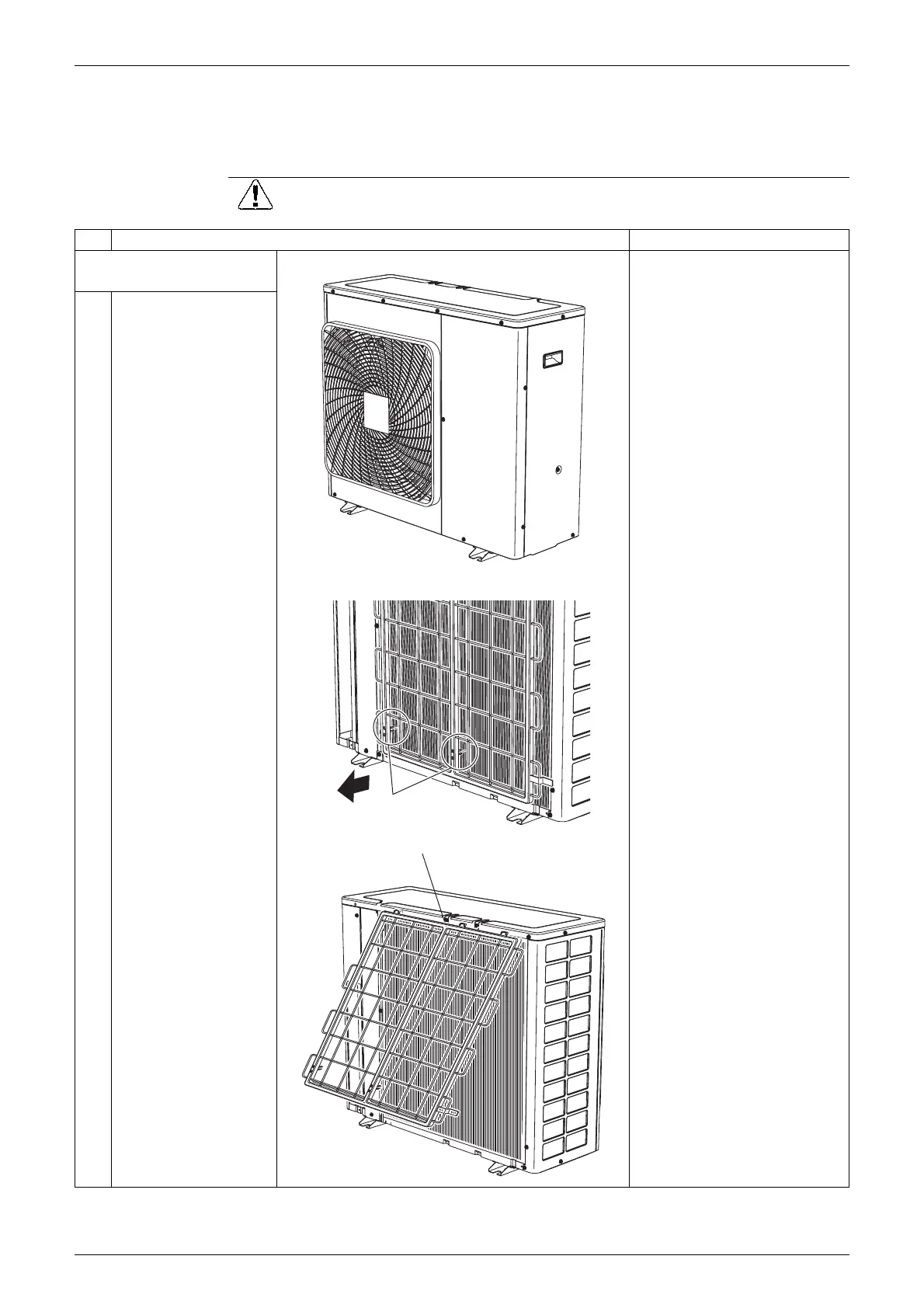

Undo the 2 hooks at the
bottom first.

The hooks are secured in
the clearances of the heat
exchanger fins.
Hooks
Suction grille
